Hyundai Santa Fe: Air Cleaner. Components and Components Location - Intake And Exhaust System - Engine Mechanical SystemHyundai Santa Fe: Air Cleaner. Components and Components Location

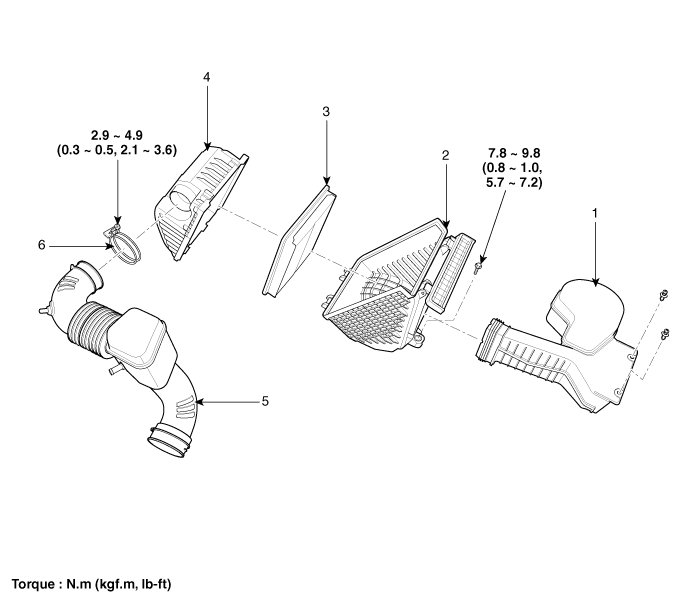

Components

1. Air duct
2. Air cleaner body
3. Air cleaner element
4. Air cleaner cover
5. Air intake hose
6. Clamp


Air Cleaner. Repair procedures
Removal and Installation 1. Remove the engine cover. 2. Remove the air duct(A). 3. Remove the battery. 4. Remove the air cleaner assembly. (1) Disconnect the breather hose (A), the intensifier hose (B). ...
