Hyundai Santa Fe: Alternator. Components and Components Location - Charging System - Engine Electrical SystemHyundai Santa Fe: Alternator. Components and Components Location

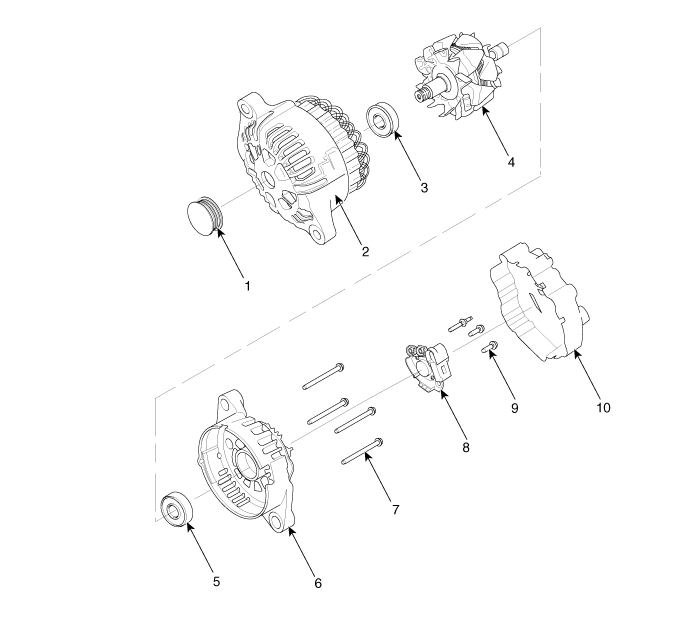

Components

1. OAD (Overrunning Alternator Decoupler)
2. Front bracket
3. Front bearing
4. Rotor
5. Rear bearing
6. Rear bracket
7. Through bolt
8. Regulator assembly
9. Regulator bolt
10. Rear cover


Alternator. Specifications
Specification Alternator Item Specification Rated voltage 13.5V, 130A Speed in use 1,000 ~ 18,000 rpm Voltage regulator IC Regulator built-in type Regulator Setting Voltage External mode Refer to below ...

Alternator. Schematic Diagrams
Circuit Diagram ...
