Hyundai Santa Fe: Components and Components Location - Evaporative Emission Control System - Emission Control SystemHyundai Santa Fe: Components and Components Location

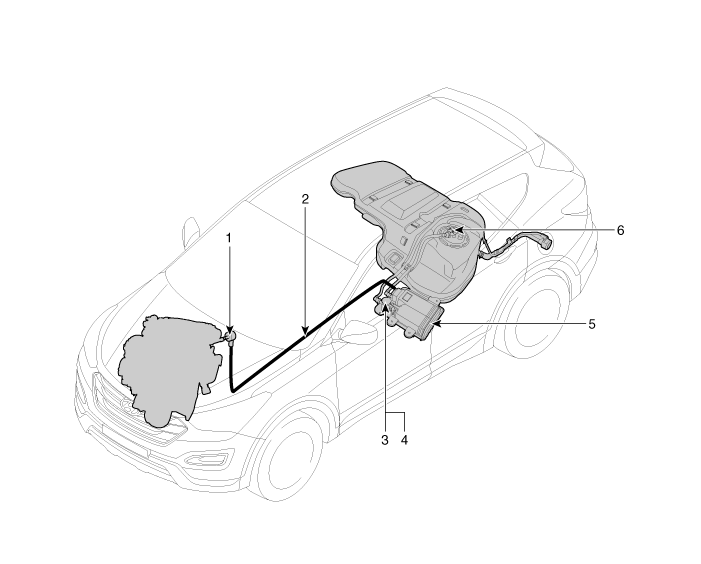

Components Location

1. Purge Control Solenoid Valve (PCSV)
2. Vapor line
3. Fuel tank air filter
4. Canister Close Valve (CCV)
5. Canister
6. Fuel Tank Pressure Sensor (FTPS)


Schematic Diagrams
Schematic Diagram Canister Canister is filled with charcoal and absorbs evaporated vapor in fuel tank. The gathered fuel vapor in canister is drawn into the intake manifold by the ECM/PCM when appropriate ...

Repair procedures
Inspection [Evap Leak Test] Engine Control Module (ECM) controls Purge Control Solenoid Valve (PCSV) and Canister Close Valve (CCV) for EVAP System diagnosis if the conditions are satisfied. ECM displays ...
