Hyundai Santa Fe (DM): Components and Components Location - Fender - Body (Interior and Exterior)Hyundai Santa Fe (DM): Components and Components Location

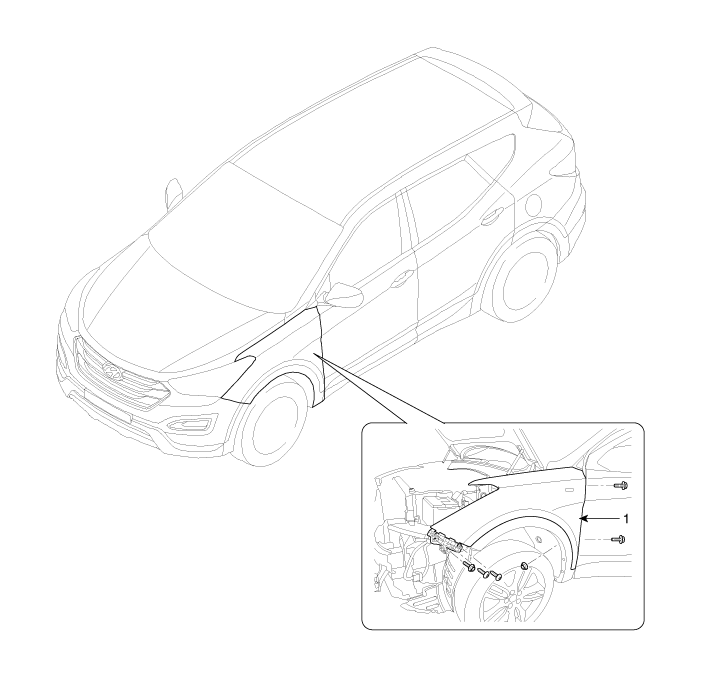

Component Location

1. Fender assembly



Fender
...

Repair procedures
Replacement • Be careful not to damage the fender and body. • When removing the clips, use a clip remover. 1. Remove the head lamps. 2. Remove the side sill molding. 3. Loosen the front wheel guard ...
