Hyundai Santa Fe: Components and Components Location
Components
|

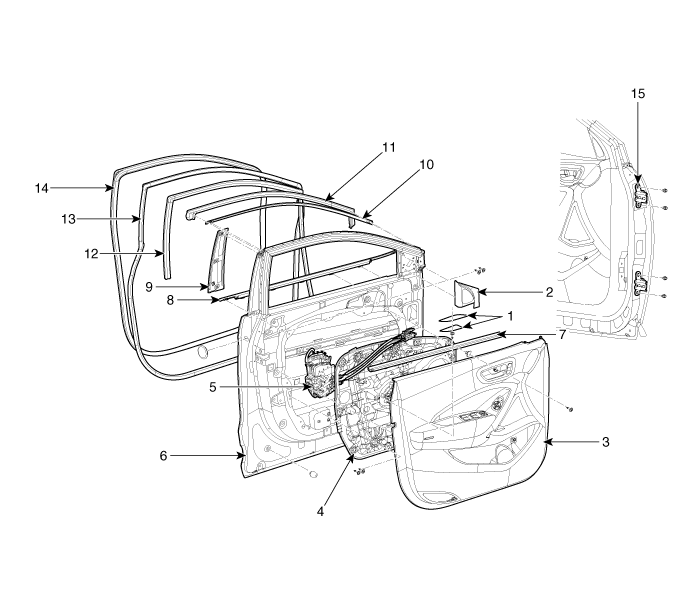

1. Front door pull cap 2. Front door quadrant inner cover 3. Front door trim 4. Front door module 5. Front door latch 6. Front door panel 7. Front door belt inside weatherstrip 8. Front door belt outside weatherstrip |
9. Front door B pillar frame garnish 10. Front door frame upper moulding 11. Front door upper opening weatherstrip 12. Front door glass run 13. Front door side weatherstrip 14. Front door body side weatherstrip 15. Front door hinge |
Front Door
...
Repair procedures
Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace them if necessary. 1. Remove the front door trim. 2. Remove the front door window glass mounting hole ...
