Components

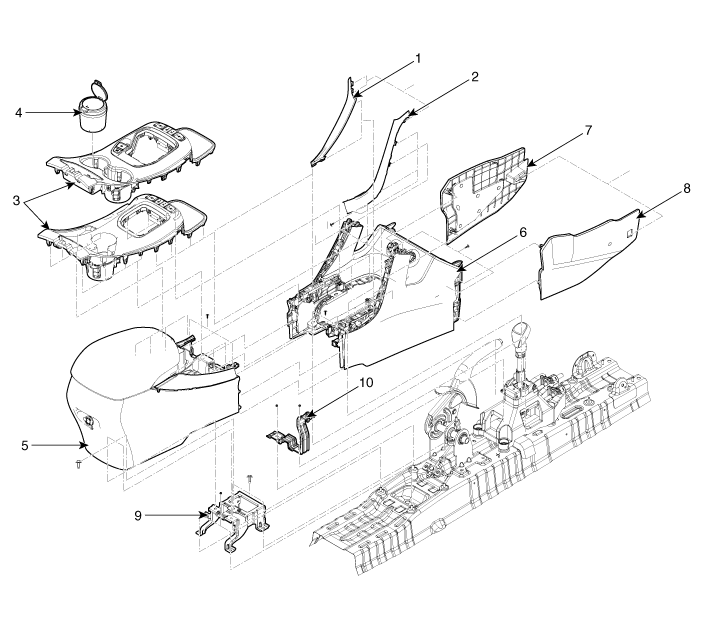

[M/T]

1. Front console garnish [LH]
2. Front console garnish [RH]
3. Console upper cover
4. Ash tray
5. Console rear complete assembly
6. Console front complete assembly
7. Console side cover [LH]
8. Console side cover [RH]
9. Console rear mounting bracket
10. Console front mounting bracket

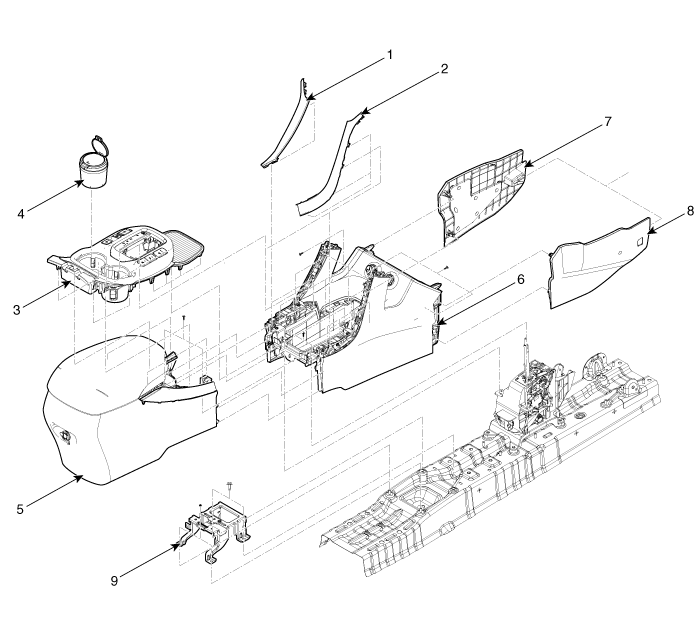

[A/T]

1. Front console garnish [LH]
2. Front console garnish [RH]
3. Console upper cover
4. Ash tray
5. Console rear complete assembly
6. Console front complete assembly
7. Console side cover [LH]
8. Console side cover [RH]
9. Console rear mounting bracket


    Floor Console Assembly. Components and Components Location
    Component Location [Console rear complete assembly] 1. Console rear complete assembly [Console front complete assembly] ...
