Hyundai Santa Fe: Components and Components Location - Rear Seat - Body (Interior and Exterior) - Hyundai Santa Fe DM 2013-2019 Service ManualHyundai Santa Fe: Components and Components Location

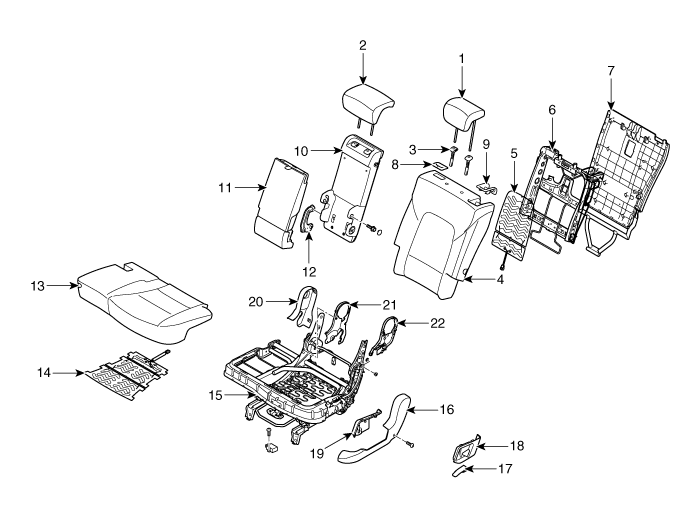

Components (1)

[Second row seat assembly]
(LH)

1. Rear seat headrest [LH]
2. Rear seat center headrest
3. Rear seat headrest guide
4. Rear seat back cover
5. Rear seat back warmer
6. Rear seat back frame assembly
7. Rear seat back panel
8. Rear center seat belt upper anchor cover
9. Rear seat folding cover
10. Rear back armrest panel
11. Rear back armrest
12. Rear back armrest bracket
13. Rear seat cushion cover
14. Rear seat cushion warmer
15. Rear seat cushion frame assembly
16. Rear seat shield outer cover
17.Rear seat slide knob
18. Rear seat slide outer cover
19. Rear seat slide inner cover
20. Rear seat shield inner cover
21. Rear inside cover [RH]
22.Rear inside cover [LH]

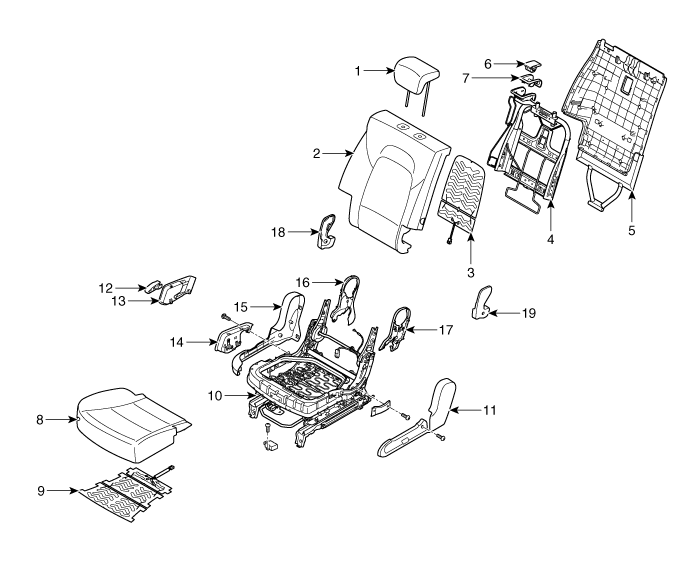

Components (2)

[Second row seat assembly]
(RH)

1. Rear seat headrest [RH]
2. Rear seat back cover
3. Rear seat back warmer
4. Rear seat back frame assembly
5. Rear seat back panel
6. Rear seat folding knob
7. Rear seat folding cover
8. Rear seat cushion cover
9. Rear seat cushion warmer
10. Rear seat cushion frame assembly
11. Rear seat shield inner cover
12. Rear seat slide knob
13. Rear seat slide outer cover
14. Rear seat slide inner cover
15. Rear seat shield outer cover
16. Rear inside cover [RH]
17. Rear inside cover [LH]
18. Rear seat outer link cover
19. Rear seat inner link cover

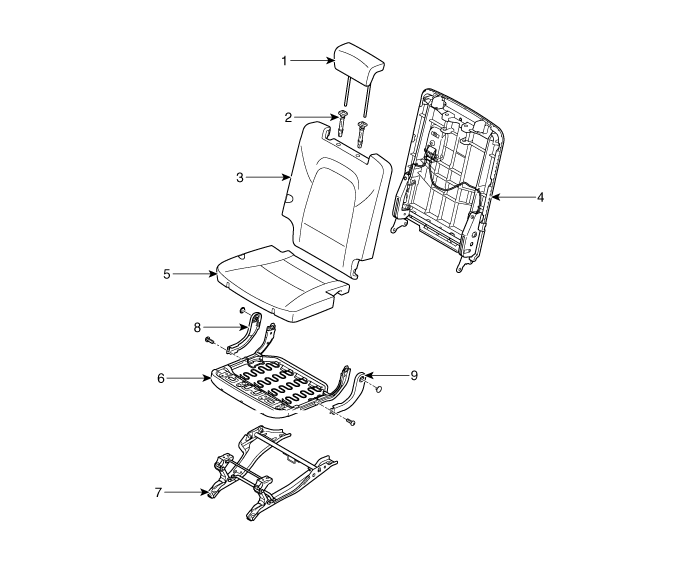

Components (3)

[Third row seat assembly]
(LH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back frame assembly
5. Rear seat cushion cover
6. Rear seat cushion frame assembly
7. Rear seat cushion track
8. Rear seat inner link cover
9. Rear seat outer link cover

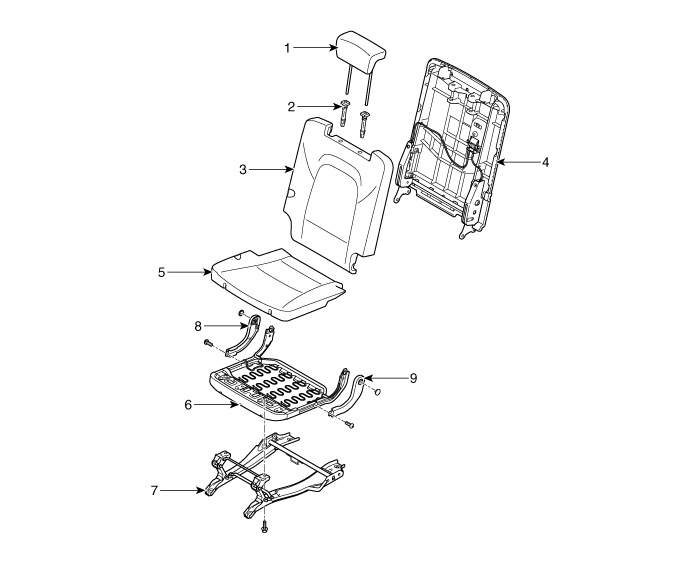

Components (4)

[Third row seat assembly]
(RH)

1. Rear seat headrest
2. Rear seat headrest guide
3. Rear seat back cover
4. Rear seat back frame assembly
5. Rear seat cushion cover
6. Rear seat cushion frame assembly
7. Rear seat cushion track
8. Rear seat outer link cover
9. Rear seat inner link cover
