Hyundai Santa Fe (DM): Components and Components Location - Rear Parking Assist System - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

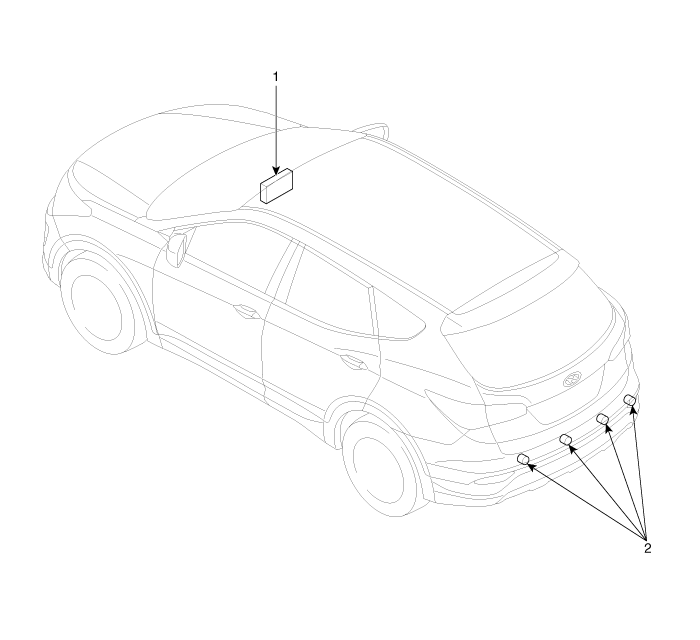

Component Location

1. BCM (Body Control Module)
 2. Ultrasonic sensor

※ Rear parking assist control unit function is built in BCM (body control unit).


Specifications
Specification Item Specification Ultrasonic sensor Voltage rating DC 12 V Detecting range 30 cm ~ 120 cm Operation voltage DC 9 ~ 16 V Operation current MAX 300 mA Operation temperature -30°C ~ +80°C ...

Description and Operation
System Overview RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or in low speed environments. The sensor uses ultrasonic waves to detect ...
