Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Button Engine Start System / Components and Components Location

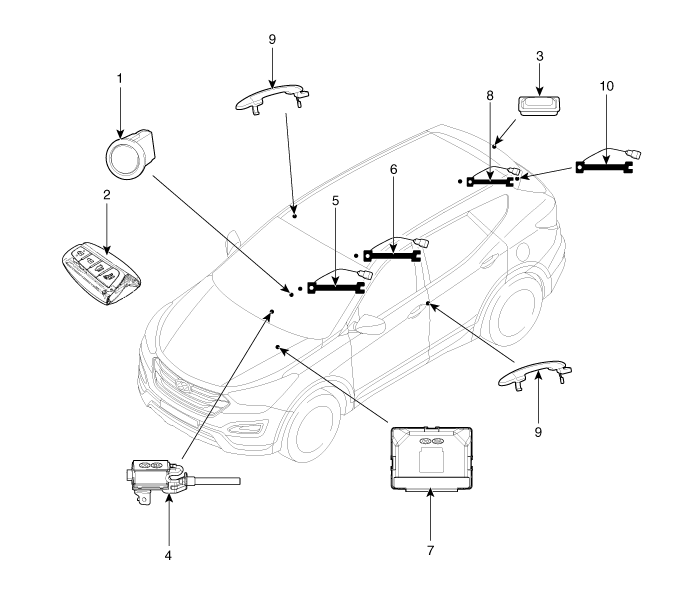

Component Location

1. Start Stop Button(SSB)
2. FOB key
3. Tailgate open switch
4. RF receiver
5. Interior antenna 1

6. Interior antenna 2
7. Smart key unit
8. Trunk antenna
9. Door handle & door antenna
10. Bumper antenna

Button Engine Start System

...

Schematic Diagrams

Circuit Diagram (1) Circuit Diagram (2) ...
