Hyundai Santa Fe: Cooling Fan. Schematic Diagrams - Cooling System - Engine Mechanical SystemHyundai Santa Fe: Cooling Fan. Schematic Diagrams

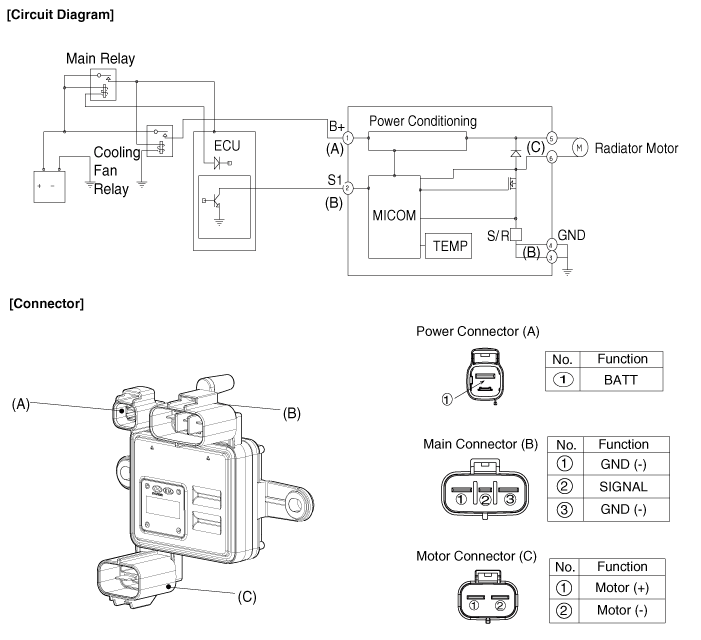

Circuit Diagram

PWM Circuti Diagram

PWM Circuti Diagram


Cooling Fan. Specifications
Specification Fuction Specification Maximum Drive Capability 250 W 21.0 + 10% A Input Signal Frequency 300 ± 5% Duty 10, 30 ~ 90 % Voltage level HI 0.7 V above LOW 0 ~ 1.9 V ...

Cooling Fan. Repair procedures
Removal and Installation Cooling Fan Assembly 1. Disconnect the battery terminals. 2. Remove the air cleaner assembly. 3. Remove the under cover. 4. Remove the front bumper cover.   5. Disconnect ...
