Hyundai Santa Fe: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location - Airbag Module - RestraintHyundai Santa Fe: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

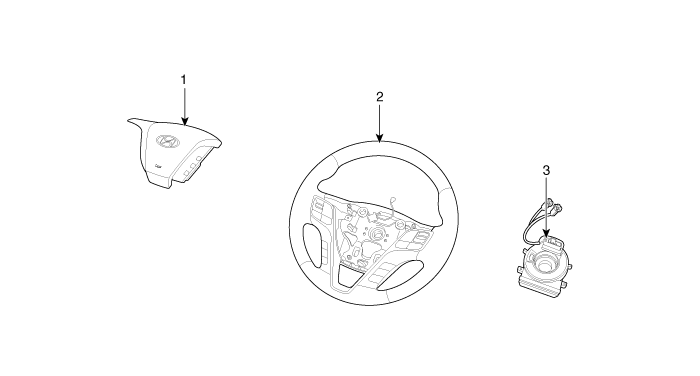

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring


Driver Airbag (DAB) Module and Clock Spring. Description and Operation
Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash occurs. The ...

Driver Airbag (DAB) Module and Clock Spring. Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the driver airbag module by putting in a flat tool (Ø5mm) into the guide hole ...
