Hyundai Santa Fe: Inside lamp

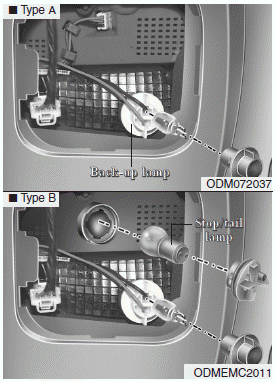

1. Open the tailgate.
2. Remove the service cover using a flat-blade screwdriver.

3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise
until the tabs on the bulb align with the slots in the socket. Pull the bulb out
of the socket. (Back-up lamp : Remove the bulb from the socket by pulling it out)
5. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
6. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
Outside lamp
1. Open the tailgate. 2. Remove the service cover using a flat-blade screwdriver. 3. Loosen the lamp assembly retaining please verify. 4. Remove the rear combination lamp assembly from the body of the ...
High mounted stop lamp replacement
1.Open the tailgate. 2.Gently remove the center cover of the rear tailgate trim. 3.Disconnect the electrical connector. 4.Loosen the retaining nuts and remove the spoiler. 5.Remove the high mounted stop ...
