Hyundai Santa Fe (DM): Rail Pressure Sensor (RPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Rail Pressure Sensor (RPS). Schematic Diagrams

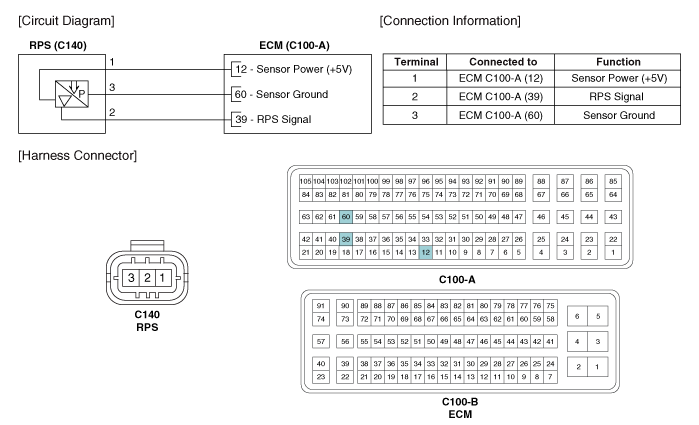

Circuit Diagram
