Hyundai Santa Fe (DM): Roof Antenna. Components and Components Location - AVN System - Body Electrical SystemHyundai Santa Fe (DM): Roof Antenna. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / AVN System / Roof Antenna. Components and Components Location

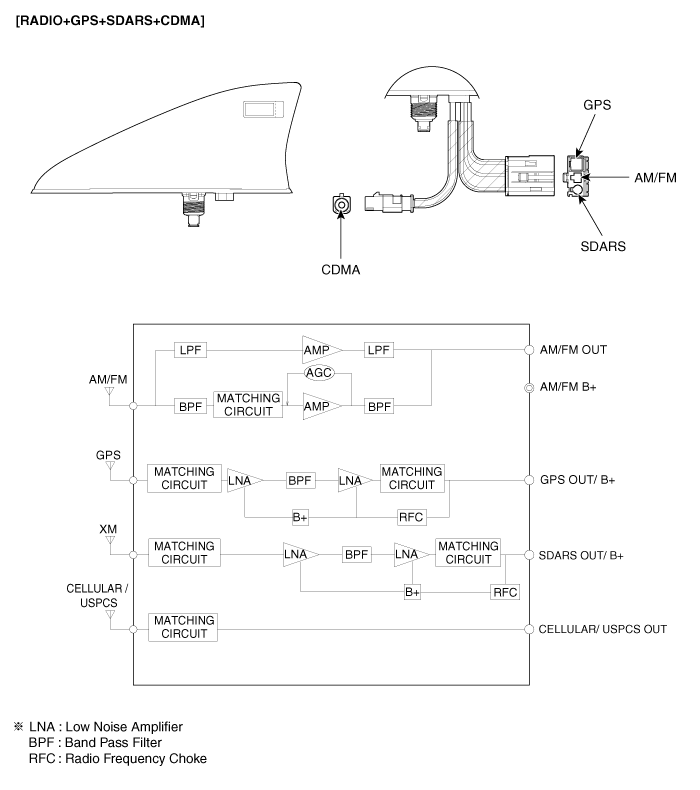

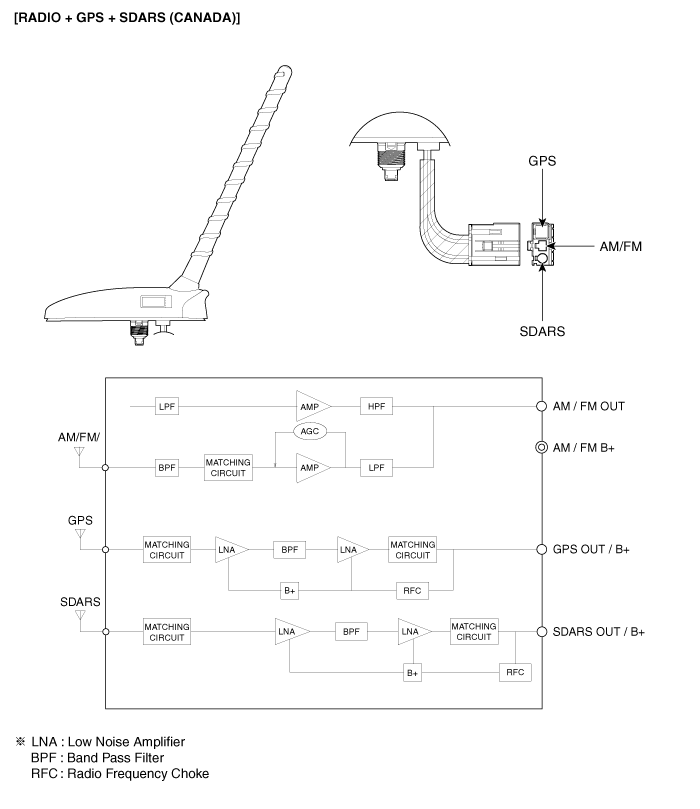

Components


External Amplifier. Repair procedures
Removal External Amplifier 1. Remove the passenger seat assembly. 2. Remove the external amplifier (A) after disconnecting the connectors and loosening the mounting bolts (3EA). Installation External Amplifier ...

Roof Antenna. Repair procedures
Removal 1. Remove the rear roof trim. 2. Disconnect the roof antenna connectors (A) from the roof antenna. 3. Remove the roof antenna (A) after removing a nut. Installation 1. Connect the roof antenna ...
