Hyundai Santa Fe: Shift Lever. Repair procedures - Automatic Transaxle Control System - Automatic Transaxle System - Hyundai Santa Fe DM 2013-2018 Service ManualHyundai Santa Fe: Shift Lever. Repair procedures

Removal

1.
Remove the floor console.
2.
Remove the air duct.
3.
Disconnect sports mode connector (A).

4.
Disconnect the shift cable (A).

5.

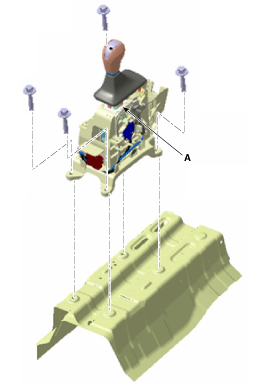

Remove the shift lever assembly (A) by removing the bolts (C-4ea).

Tightening torque :
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)


Installation

1.
Install in the reverse order of removal.
Set shift lever and inhibitor switch manual control lever to "N" position.
