Hyundai Santa Fe: Side Airbag (SAB) Module. Components and Components Location - Airbag Module - RestraintHyundai Santa Fe: Side Airbag (SAB) Module. Components and Components Location

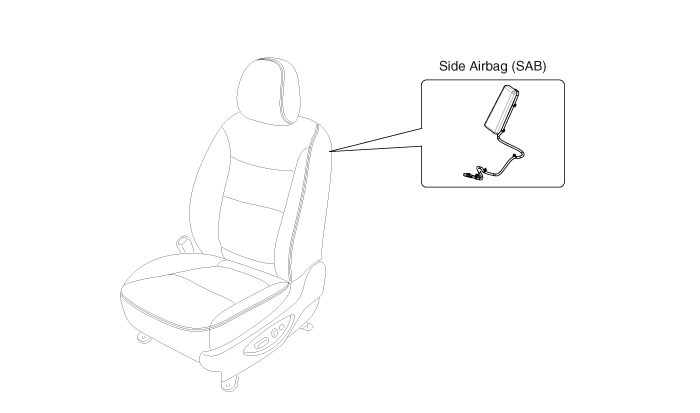

Components


Side Airbag (SAB) Module. Description and Operation
Description The Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when side crash occurs. The SRSCM determines deployment of side airbag by using ...

Side Airbag (SAB) Module. Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work. 2. Remove the front seat assembly. 3. Remove the seat back assembly. The side airbag cannot be disassembled ...
