Hyundai Santa Fe: Steering Column Shroud Panel. Components and Components Location - Crash Pad - Body (Interior and Exterior)Hyundai Santa Fe: Steering Column Shroud Panel. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel. Components and Components Location

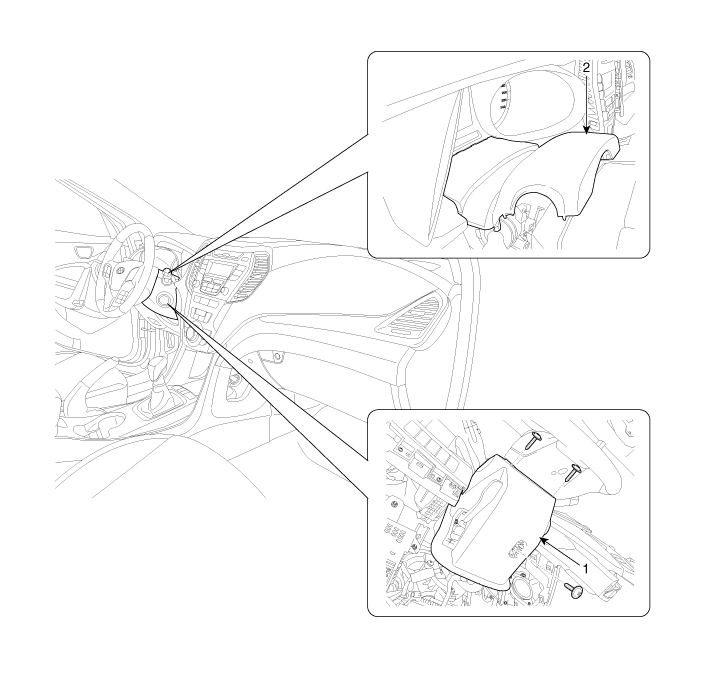

Component Location

1. Steering column shroud lower panel
 2. Steering column shroud upper panel
