Hyundai Santa Fe: Water Temperature Control Assembly. Components and Components
Location - Cooling System - Engine Mechanical SystemHyundai Santa Fe: Water Temperature Control Assembly. Components and Components Location

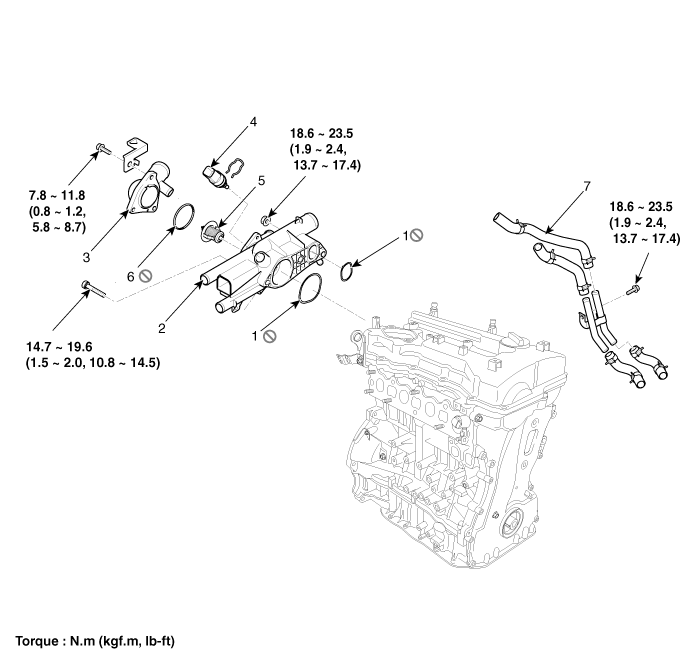

Components

1. O-ring
2. Water temperature control assembly
3. Water inlet fitting
4. Engine coolant temperature sensor
5. Thermostat
6. Thermostat gasket
7. Oil cooler coolant hose


Reservoir Tank. Repair procedures
Removal and Installation 1. Remove the over flow hose(A). 2. Remove the reservoir tank(B). Tightening torque: 7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft) 3. Install in the reverse order of removal. ...

Water Temperature Control Assembly. Repair procedures
Removal 1. Disconnect the battery negative terminal. 2. Loosen the drain plug and drain the engine coolant. 3. Remove the radiator upper hose and lower hose. 4. Disconnect the connectors and then remove ...
