Hyundai Santa Fe: Wheel. Repair procedures - Tires/Wheels - Suspension SystemHyundai Santa Fe: Wheel. Repair procedures

Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.
Run out inspection
1.
Jack up the vehicle.
2.

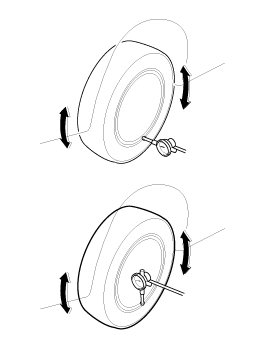

Measure the wheel Run-out by using a dial indicator as illustration below.
Run-out
Aluminum
Radial mm(in.)
Below 0.3(0.0118)
Lateral mm(in.)
Below 0.3(0.0118)

3.
If measured value exceeds the standard value, replace the wheel.
