Hyundai Santa Fe (DM): Brake Booster. Components and Components Location - Brake System - Brake SystemHyundai Santa Fe (DM): Brake Booster. Components and Components Location

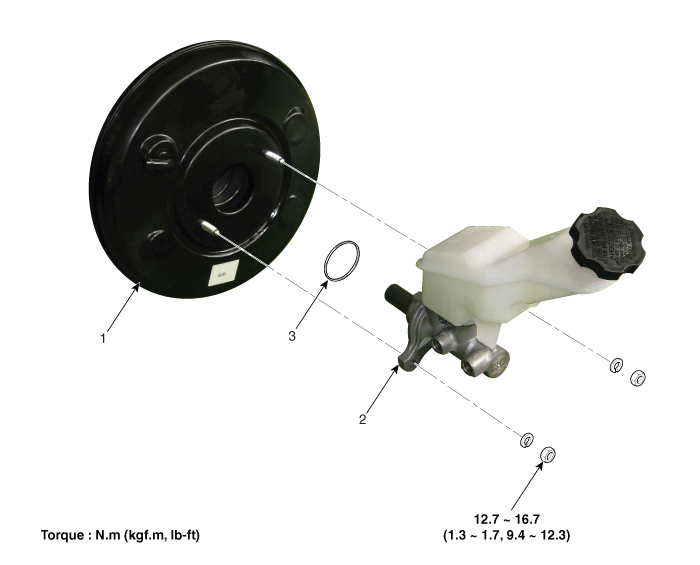

Components (1)

1. Brake booster
2. Master cylinder assembly
3. O-ring

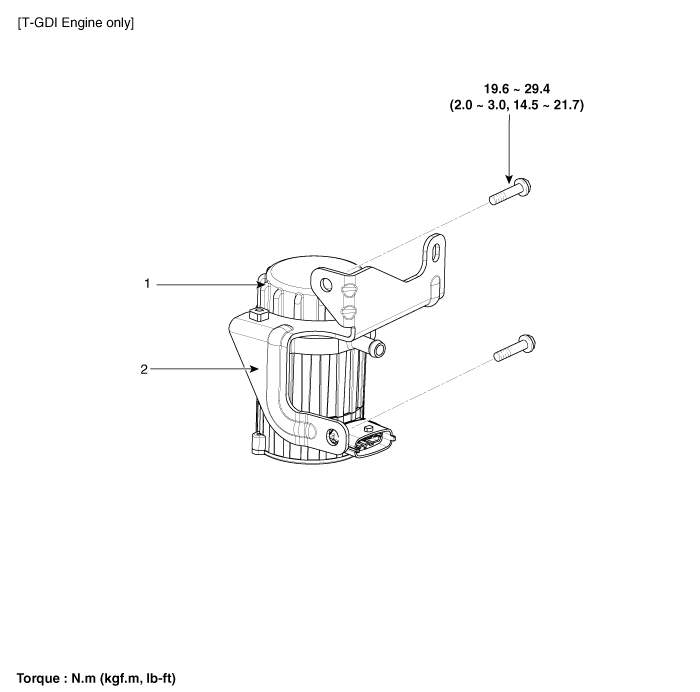

Components (2)

1. Vacuum pump
2. Bracket


Repair procedures
Operation and Leakage Check Check all of the following items: Component Procedure Brake Booster (A) Check brake operation by applying the brakes during a test drive. If the brakes do not work properly, ...

Brake Booster. Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depresses fully ...
