Hyundai Santa Fe: Components and Components Location - Smart Key System - Body Electrical SystemHyundai Santa Fe: Components and Components Location

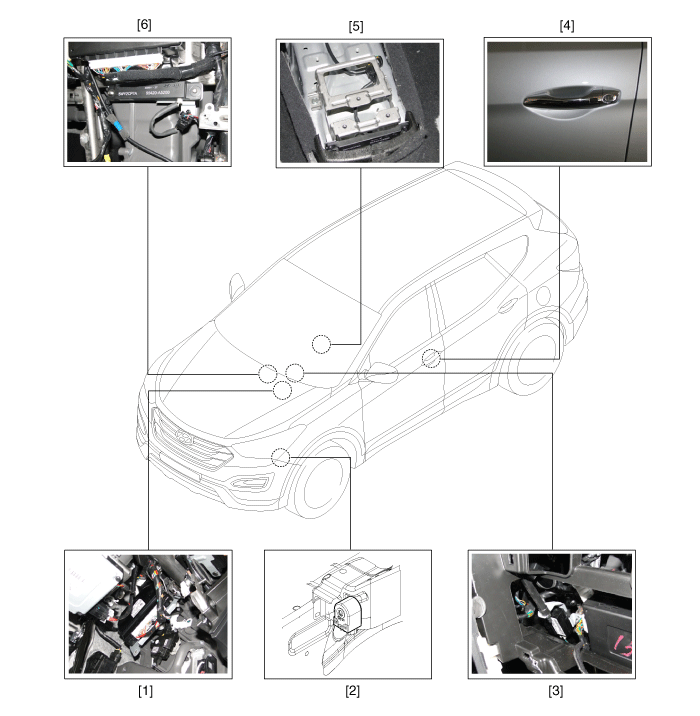

Component Location (1)

1. Smart key unit
2. Buzzer
3. RF receiver
4. Door outside handle
5. Interior antenna 2
6. Interior antenna 1

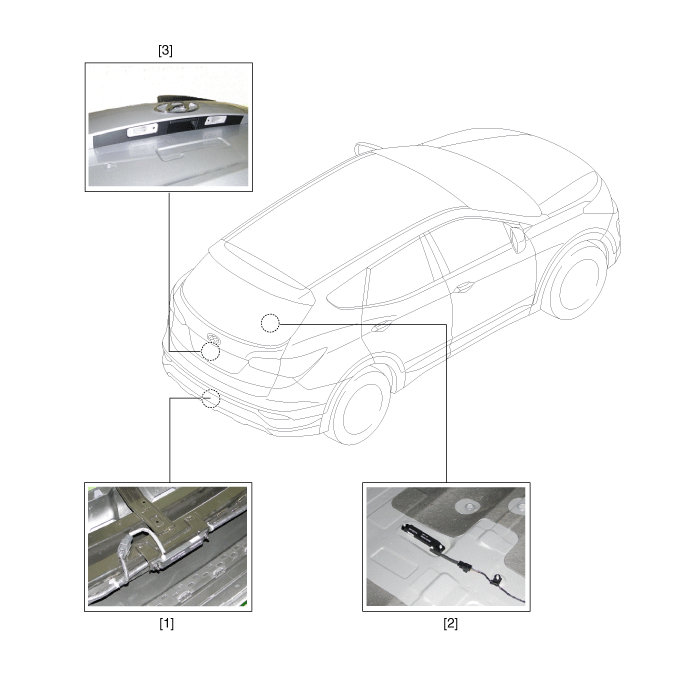

Component Location (2)

1. Tailgate open switch
2. Bumper antenna
3. Interior 3 antenna


Specifications
Specifications Smart Key Unit Items Specification Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temperature -22°F ~ 167°F (-30°C ~ 75°C) Load Max. 2.9mA (When welcome light function off) ...

Description and Operation
Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is needed. The ...
