Hyundai Santa Fe: Components and Components Location
Components
|

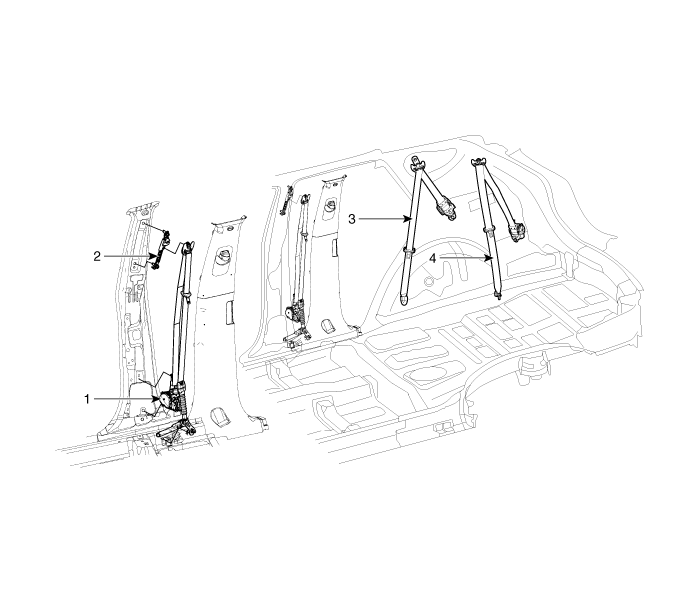

1. Front seat belt pretensioner / EFD system 2. Height adjuster |
3. Second row seat belt 4. Third row seat belt |
