Hyundai Santa Fe (DM): Compass function - Mirrors - Features of your vehicleHyundai Santa Fe (DM): Compass function

The Compass can be turned ON and OFF and will remember the last state when the ignition is cycled. To turn the display feature ON/OFF:

1. Press and release the within 1 second to turn the display feature OFF. button within 1 second to turn the display feature OFF.
2. Press and release the within 1 second to turn the display back ON. button again within 1 second to turn the display back ON.

Additional options can be set with press and hold sequences of the There is a difference between magnetic north and true north. The compass in the button and are detailed below.

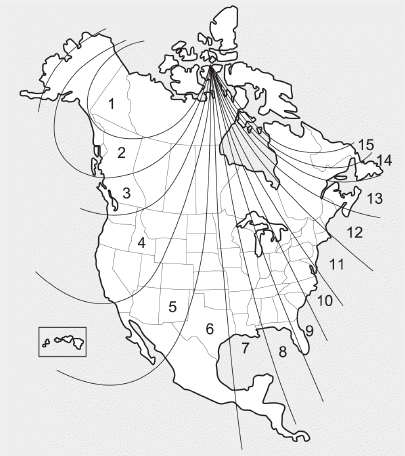

There is a difference between magnetic north and true north. The compass in the mirror can compensate for this difference when it knows the Magnetic Zone in which it is operating. This is set either by the dealer or by the user. The operating Zone Numbers for North America are shown in the figure on the following section.

To adjust the Zone setting:

To adjust the Zone setting:

1. Determine the desired Zone Number based upon your current location on the Zone Map.
2. Press and hold the seconds, the current Zone Number will appear on the display. button for 6 seconds, the current Zone Number will appear on the display.
3. Pressing and holding the again will cause the numbers to increment (Note: they will repeat …13, 14, 15, 1, button again will cause the numbers to increment (Note: they will repeat …13, 14, 15, 1, 2, …). Releasing the button when the desired Zone Number appears on the display will set the new Zone.
4. Within about 5 seconds the compass will start displaying a compass heading again.

There are some conditions that can cause changes to the vehicle magnets, such as installing a ski rack or a CB antenna. Body repair work on the vehicle can also cause changes to the vehicle's magnetic field. In these situations, the compass will need to be re-calibrated to quickly correct for these changes. To re-calibrate the compass:

1. Press and hold the more than 9 seconds. When the compass memory is cleared a "C" will appear in the button for more than 9 seconds. When the compass memory is cleared a "C" will appear in the display.
2. To calibrate the compass, drive the vehicle in 2 complete circles at less than 5 mph (8 km/h).

Integrated HomeLink® Wireless Control System

The HomeLink® Wireless Control System provides a convenient way to replace up to three hand-held radiofrequency (RF) transmitters with a single built-in device. This innovative feature will learn the radio frequency codes of most current transmitters to operate devices such as gate operators, garage door openers, entry door locks, security systems, even home lighting. Both standard and rolling code-equipped transmitters can be programmed by following the outlined procedures. Additional HomeLink® information can be found at: www.homelink.com or by calling 1-800-355-3515.

✽ NOTICE

  • When programming a garage door opener, it is advised to park the vehicle outside of the garage.
  • It is recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink® for quicker training and accurate transmission of the radio-frequency signal.
  • Some vehicles may require the ignition switch to be turned to the second (or "accessories") position for programming and/or operation of HomeLink.
  • In the event that there are still programming difficulties or questions after following the programming steps listed below, contact HomeLink® at: www.homelink.com or 1-800-355-3515.
Automatic-dimming function
Your mirror will automatically dim upon detecting glare from the vehicles traveling behind you. The autodimming function can be controlled by the Dimming ON/OFF Button: 1. Pressing and hold the button ...

Programming
To train most devices, follow these instructions: 1. For first-time programming, press and hold the two outside buttons ( , ), HomeLink® Channel 1 and Channel 3, until the indicator light begins to flash ...
