Hyundai Santa Fe (DM): Components and Components Location - Seat Electrical - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

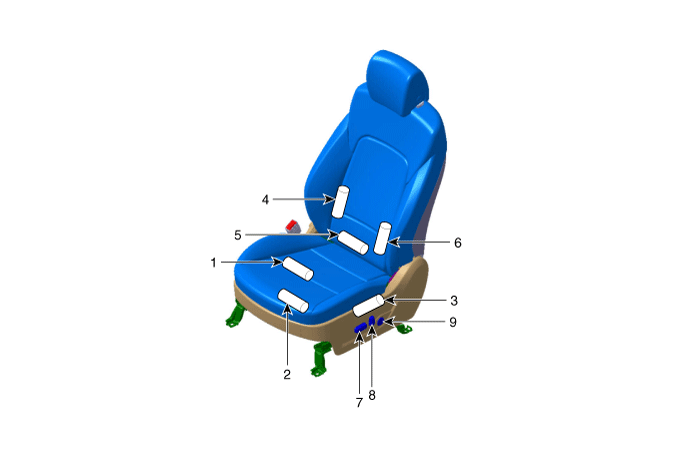

Component Location

1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumbar support motor (Horizontal)
5. Lumbar support motor (Vertical)
6. Reclining motor
7. Power seat switch
8. Reclining switch
9. Lumbar support switch


Power Seat Motor. Repair procedures
Inspection Power Seat Motor 1. Disconnect the connectors for each motor. A : Slide motor B : Front height motor C : Rear height motor D : Lumbar support motor (Horizontal) E : Lumbar support motor (Vertical) ...
