Hyundai Santa Fe (DM): Components and Components Location

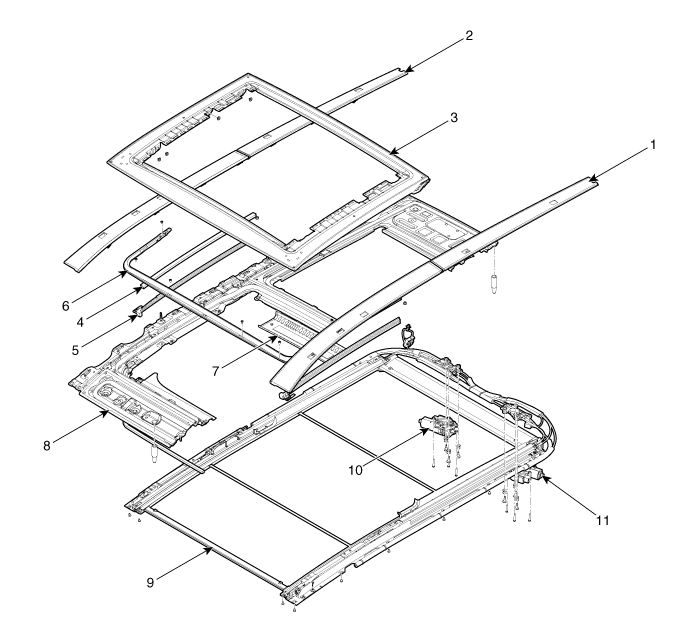

Components
|
1. Roof side moulding [LH] 2. Roof side moulding [RH] 3. Movable Glass 4. Slide 5. Cover base 6. Wind deflector |
7. Center cover 8. Panorama sunroof frame assembly 9. Mechanism rail assembly 10. Glass motor assembly 11. Roller blind motor assembly |
