Hyundai Santa Fe: Components and Components Location
Components
|

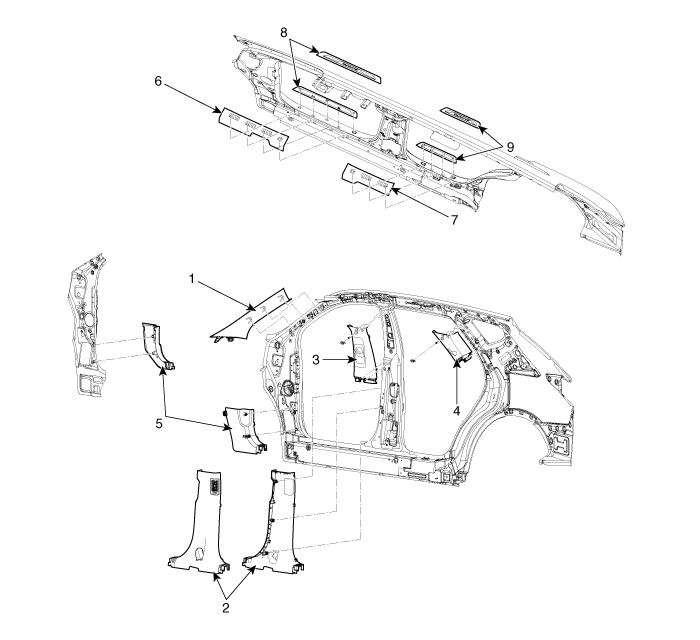

1. Front pillar trim 2. Center pillar lower trim 3. Center pillar upper trim 4. Rear pillar trim 5. Cowl side trim |
6. Front door scuff trim 7. Rear door scuff trim 8.Front door step trim 9. Rear door step trim |
Interior Trim
...
Door Scuff Trim. Components and Components Location
Component Location 1. Front door scuff trim 2. Rear door scuff trim ...
