Hyundai Santa Fe (DM): Components and Components Location - Multifunction Switch - Body Electrical SystemHyundai Santa Fe (DM): Components and Components Location

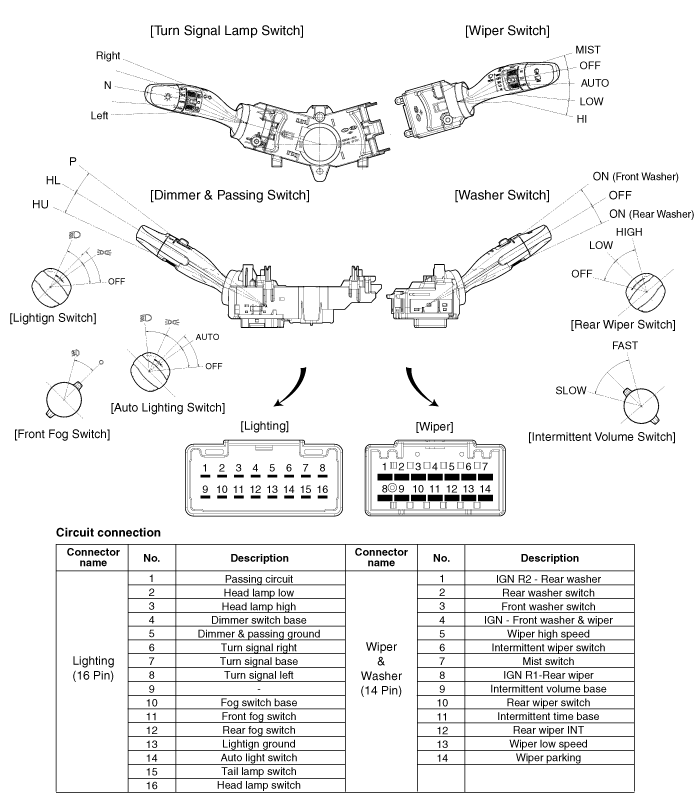

Component


Specifications
Specifications Items Specifications Rated voltage DC 12V Operating temperature range -22 ~ +176°F (-30°C ~ +80°C) Rated load Dimmer & passing switch High : 0.2A (Relay load) Low : 0.2A (Relay load) ...

Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. 3. Remove the steering column upper and lower shrouds (A) after removing 3 screws. 4. Disconnect the light switch ...
