Hyundai Santa Fe: Cross Member. Body Repair - Body Dimensions - Body (Interior and Exterior) - Hyundai Santa Fe DM 2013-2019 Service ManualHyundai Santa Fe: Cross Member. Body Repair

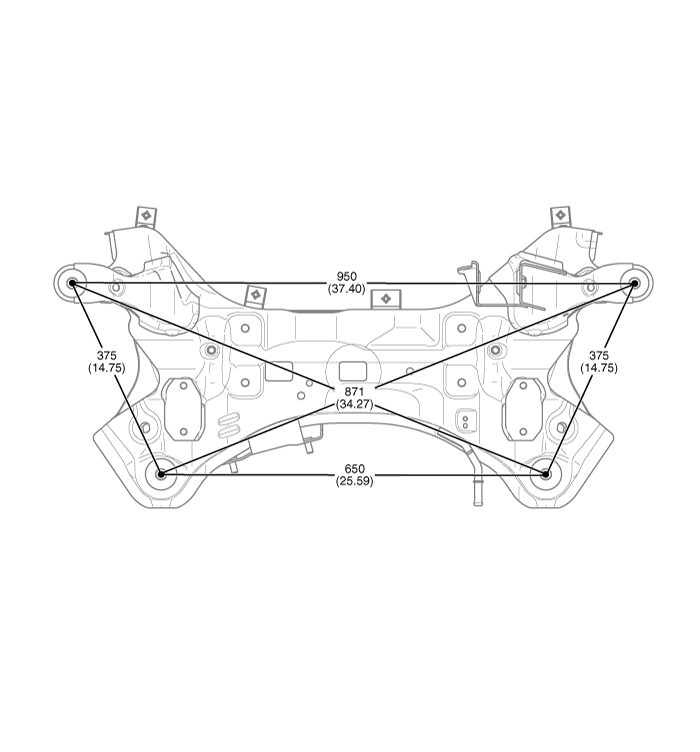

Front Cross Member

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Rear Cross Member

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
