Hyundai Santa Fe: Intake Air Temperature Sensor (IATS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe: Intake Air Temperature Sensor (IATS). Schematic Diagrams

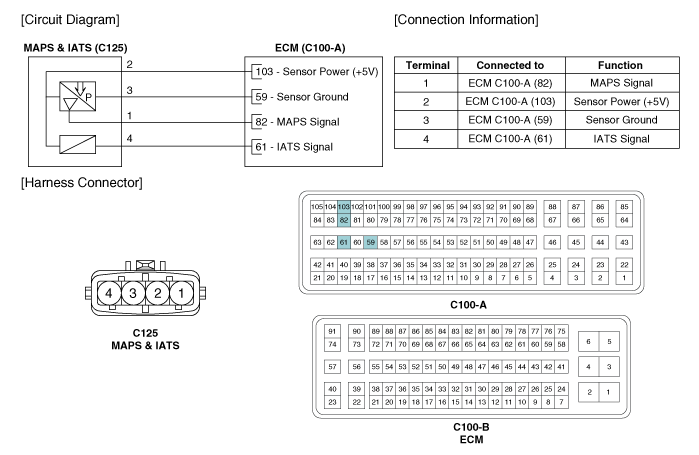

Circuit Diagram


Intake Air Temperature Sensor (IATS). Specifications
Specification Temperature Resistance (kΩ) °C °F -40 -40 40.93 ~ 48.35 -20 -4 13.89 ~ 16.03 0 32 5.38 ~ 6.09 10 50 3.48 ~ 3.90 20 68 2.31 ~ 2.57 40 104 1.08 ~ 1.21 60 140 0.54 ~ 0.62 80 176 0.29 ...

Intake Air Temperature Sensor (IATS). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between the IATS terminals 3 and 4. 4. Check that the resistance is within the specification. Specification: ...
