Hyundai Santa Fe (DM): Knee Airbag (KAB) Module. Components and Components Location - Airbag Module - RestraintHyundai Santa Fe (DM): Knee Airbag (KAB) Module. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Restraint / Airbag Module / Knee Airbag (KAB) Module. Components and Components Location

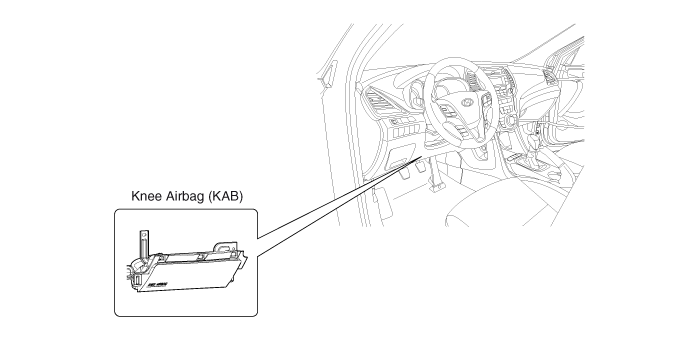

Components


Knee Airbag (KAB) Module. Description and Operation
Description The Knee Airbag (KAB) is installed inside the crash pad lower panel and protects the driver in the event of a frontal crash. The SRSCM determines if and when to deploy the KAB. Never attempt ...

Knee Airbag (KAB) Module. Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the crash pad lower panel. 3. After loosening the mounting nuts and then remove the ...
