Hyundai Santa Fe: Maintenance under severe usage conditions - Scheduled maintenance service - Maintenance - Hyundai Santa Fe DM 2013-2018 Owner's ManualHyundai Santa Fe: Maintenance under severe usage conditions

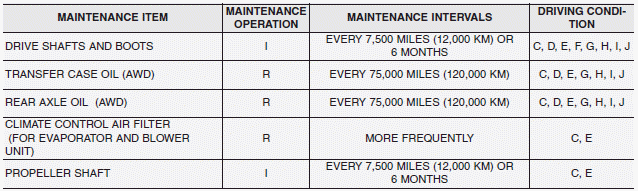

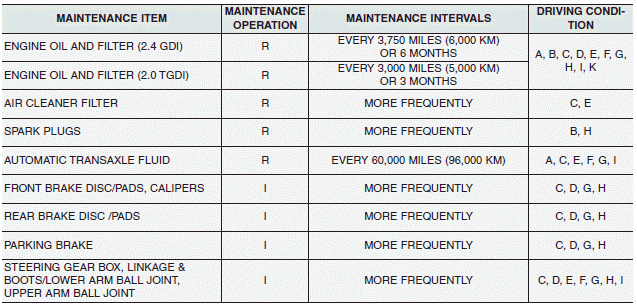

The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals.

R : Replace

I : Inspect and, after inspection, clean, adjust, repair or replace if necessary

SEVERE DRIVING CONDITIONS

SEVERE DRIVING CONDITIONS

A- Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature or less than 10 miles (16 km) in freezing temperature
B- Extensive engine idling or low speed driving for long distances
C-Driving on rough, dusty, muddy, unpaved, graveled or saltspread roads
D-Driving in areas using salt or other corrosive materials or in very cold weather
E-Driving in sandy areas
F - Driving in heavy traffic area over 90°F (32°C)
G- Driving on uphill, downhill, or mountain road
H-Towing a Trailer, or using a camper, or roof rack
I -Driving as a patrol car, taxi, other commercial use or vehicle towing
J - Driving over 106 mph (170 km/h)
