Hyundai Santa Fe: Pressure Sensor. Schematic Diagrams - Coupling Assembly - 4 Wheel Drive (4WD) SystemHyundai Santa Fe: Pressure Sensor. Schematic Diagrams

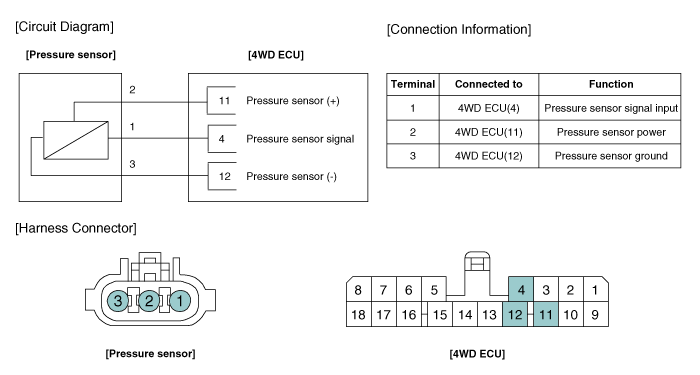

Circuit Diagram


Pressure Sensor. Description and Operation
Description The 4WD ECU makes a Motor Pump(Actuator) turn round for generating an oil pressure. And then it presses a multiple disk clutch and transfers the generated torque into rear wheels. Its torque ...

Pressure Sensor. Repair procedures
Inspection If you have trouble code related to the pressure sensor check pressure sensor according to the inspection process. Pressure Sensor Inspection Procedure Measure the resistance of pressure sensor ...
