Hyundai Santa Fe: Rear Bumper Cover. Components and Components Location - Rear Bumper - Body (Interior and Exterior)Hyundai Santa Fe: Rear Bumper Cover. Components and Components Location

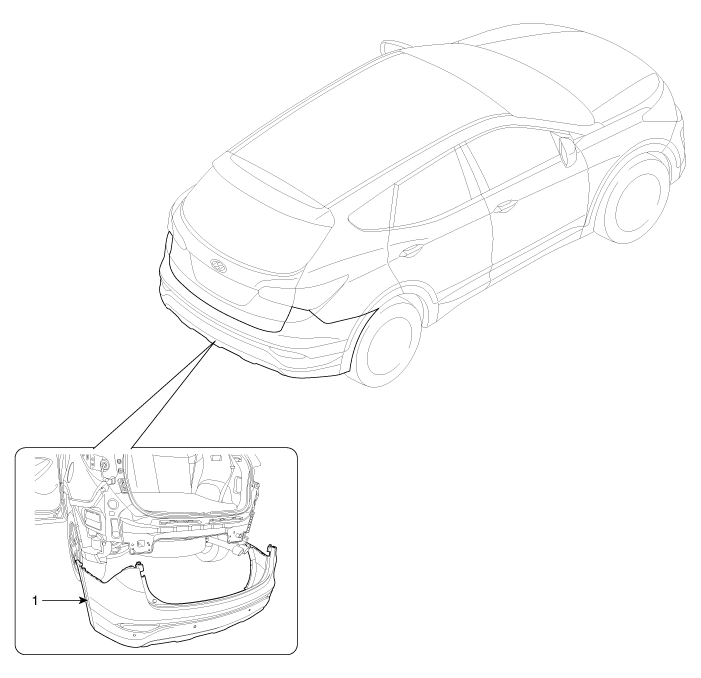

Component Location

1. Rear bumper cover



Components and Components Location
Components 1. Rear bumper cover 2. Rear bumper beam assembly 3. Rear bumper beam cover 4. Rear bumper side bracket [LH] 5. Rear bumper side bracket [RH] 6. Rear bumper lower side bracket ...

Rear Bumper Cover. Repair procedures
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
