Hyundai Santa Fe: Transaxle Oil Temperature Sensor. Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle SystemHyundai Santa Fe: Transaxle Oil Temperature Sensor. Schematic Diagrams

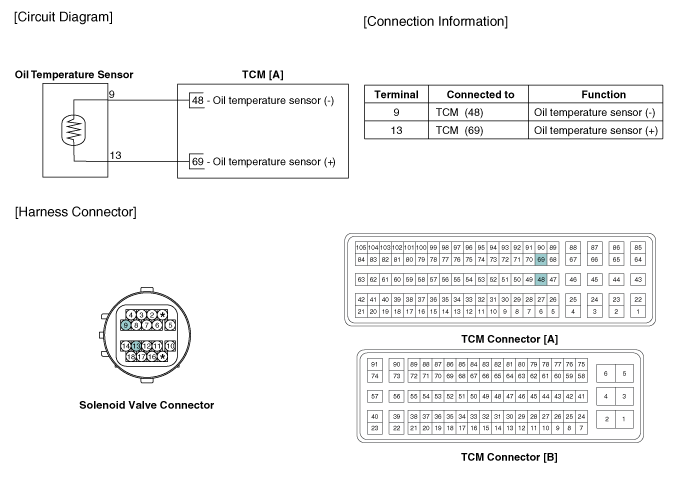

Circuit Diagram


Transaxle Oil Temperature Sensor. Specifications
Specifications ▷ Type: Negative Thermal Coefficient Type(NTC) Temp.(°C)°F Resistance (kΩ) (-40)-40 48.1 (-20)-4.0 15.6 (0)32.0 5.88 (20)68.0 2.51 (40)104.0 1.11 (60)140.0 0.61 (80)176.0 0.32 ...

Transaxle Oil Temperature Sensor. Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the air duct. 3. Disconnect the solenoid valve connector(A). 4. Measure resistance between sensor signal terminal and sensor ground terminal. 5. Check ...
