Hyundai Santa Fe: Components and Components Location - Cooling System - Engine Mechanical SystemHyundai Santa Fe: Components and Components Location

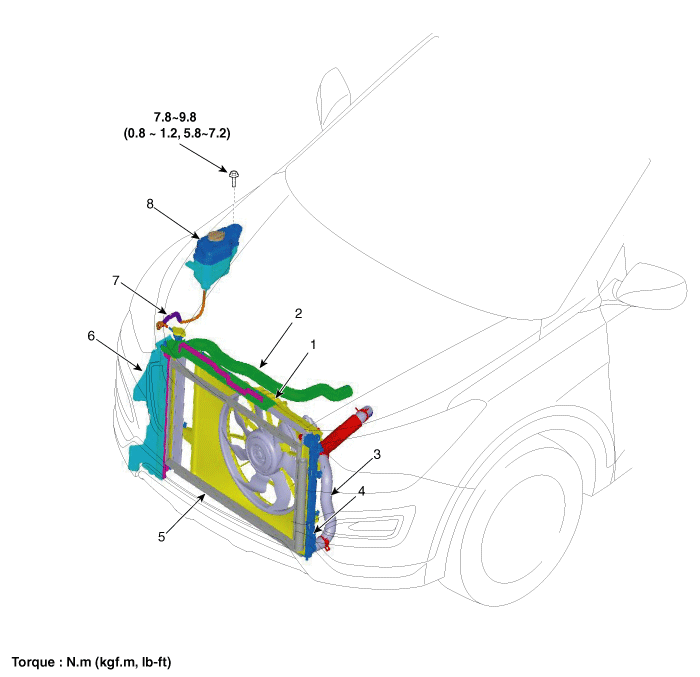

Components

1. Cooling fan
2. Radiator upper hose
3. Radiator lower hoseRadiator cap
4. Radiator
5. Condenser
6. Air guard
7. Over flow hose
8. Reservior tank
