Hyundai Santa Fe: Components and Components Location - Audio - Body Electrical SystemHyundai Santa Fe: Components and Components Location

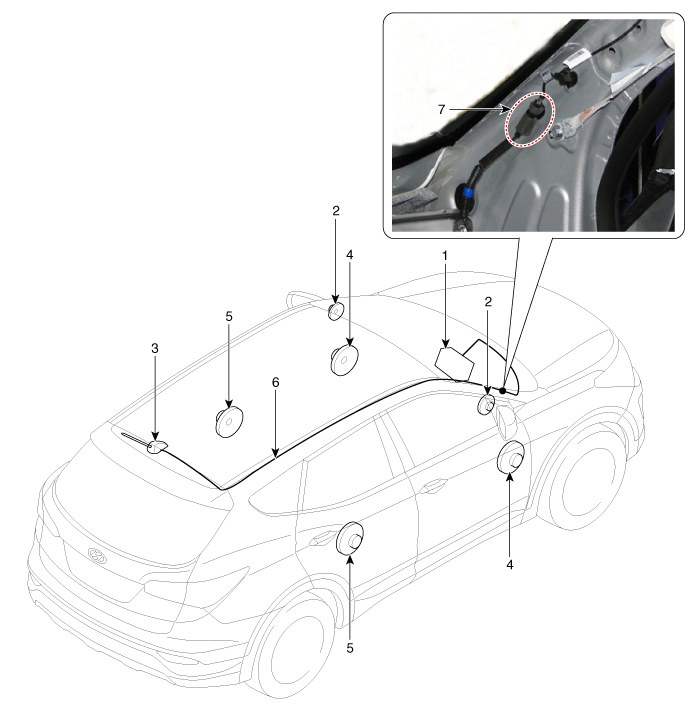

Component Location

1. Audio unit
2. Tweeter speaker
3. Roof antenna (Radio+SDARS)
4. Front door speaker
5. Rear door speaker
6. Antenna feeder cable
7. Antenna cable connector

※ SDARS : Satellite Digital Audio Radio Service


Specifications
Specifications Audio Item Specification Model RADIO/CD/MP3/SDARS (PA30A S) RADIO/CD/MP3/SDARS (PA30B S) Power supply DC 14.4V Dark current Max. 2mA (Head unit only) Antenna 80PF 75Ω Tuning type PLL ...

Audio Unit. Components and Components Location
Components Connector Pin Information No. Connector A Connector B 1 Rear left speaker (+) CAN High 2 Front left speaker (+) TMU Audio (+) (For USA) 3 Front right speaker (+) - 4 Rear right speaker (+) Steering ...
