Hyundai Santa Fe (DM): Components and Components
Location
Component Location
|

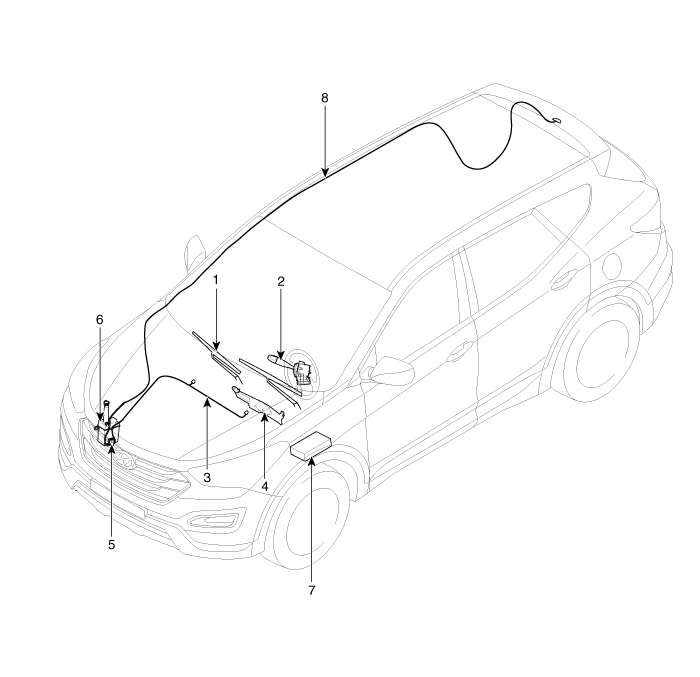

1. Windshield wiper arm & blade 2. Wiper & washer switch (Front) 3. Windshield washer hose 4. Windshield wiper motor & linkage |
5. Washer motor 6. Washer reservoir 7. Front wiper relay (Engine room relay box) 8. Rear washer hose & nozzle |
Windshield Wiper-Washer Switch. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper and lower shrouds (A) after loosening 3 screws. 3. Disconnect the connector (A). 4. If necessary of removing ...
