Hyundai Santa Fe: Components
and Components Location - Electro Chromic Inside Rear View Mirror - Body Electrical SystemHyundai Santa Fe: Components and Components Location

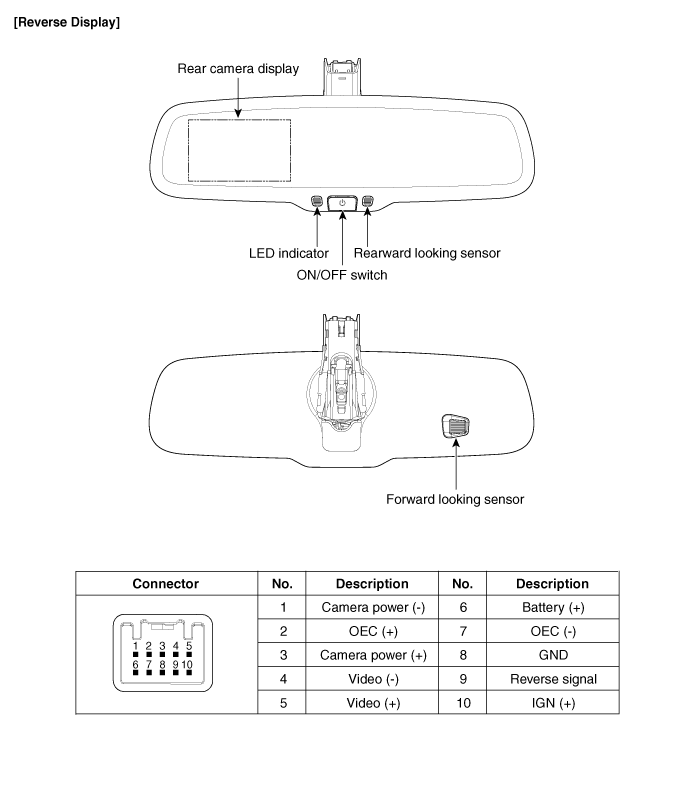

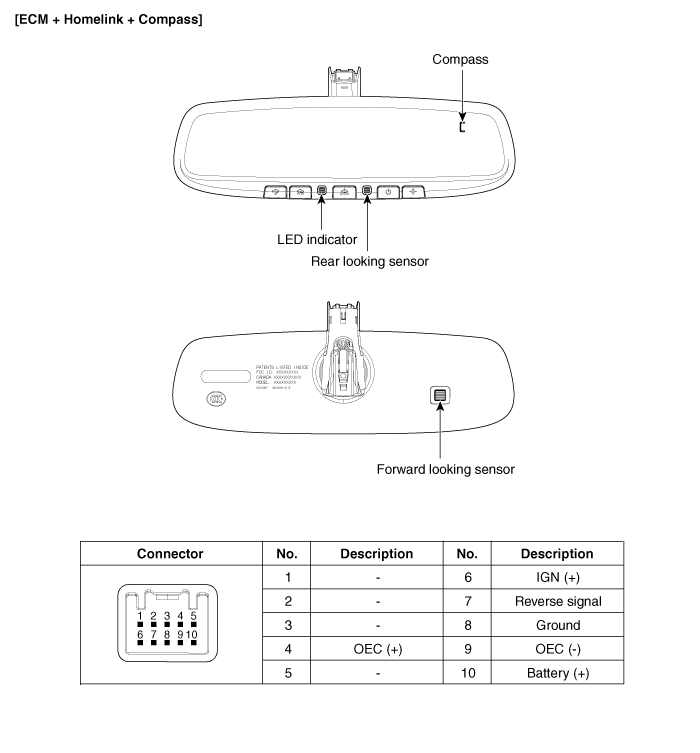

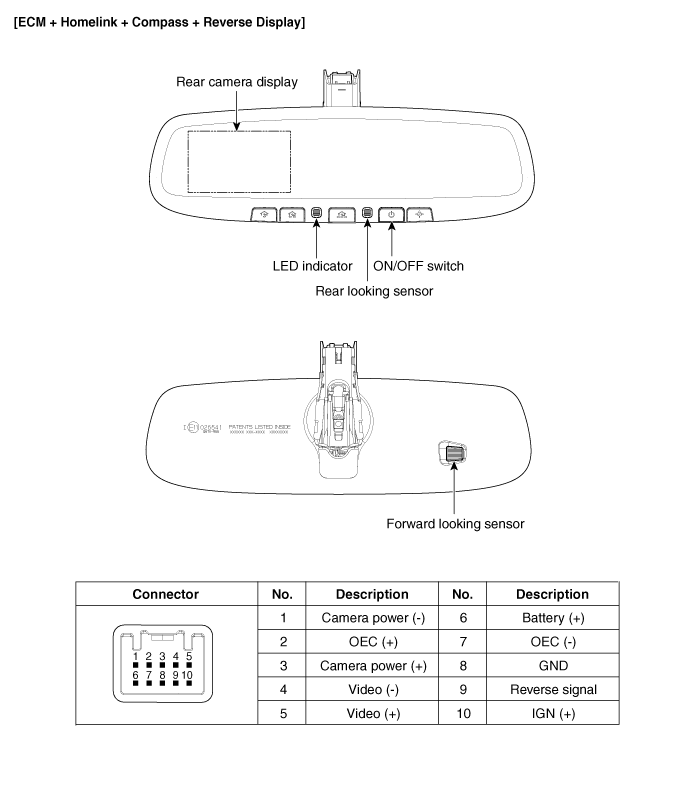

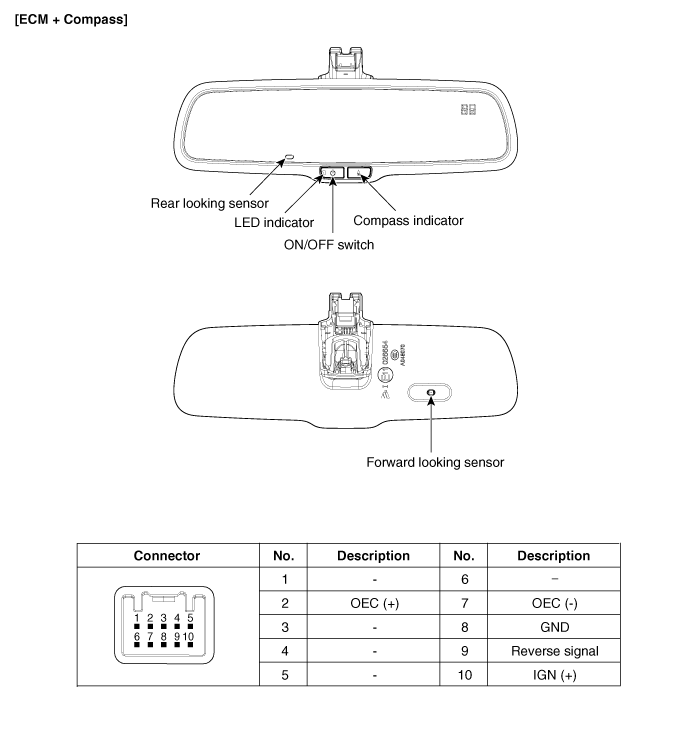

Components


Description and Operation
Description The ECM (Electro Chromatic inside rear view Mirror) is intended dim the reflecting light in the rear view mirror. The forward facing sensor detects brightness of the surroundings, while the ...
