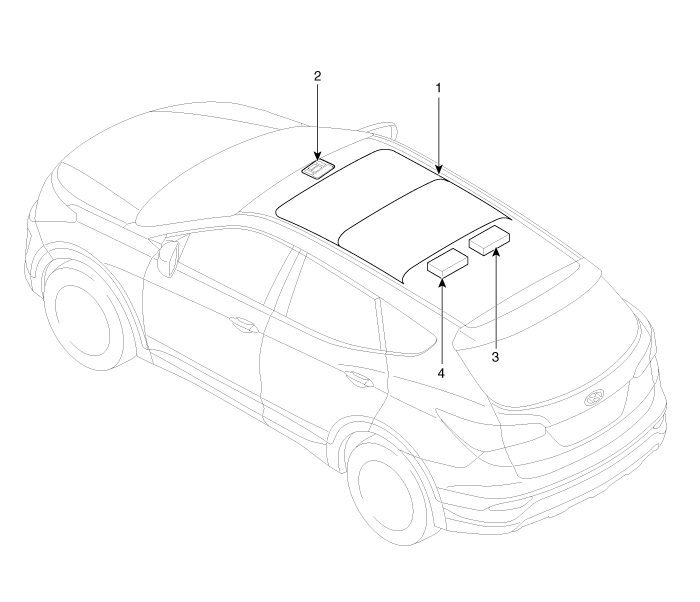

Component Location

1. Panorama sunroof
2. Panorama sunroof switch
3. Panorama sunroof motor & controller
4. Roller blind motor & slave controller


Schematic Diagrams
Circuit Diagram Connector Pin Information No. Wire harness connector Panorama motor Blind motor 1 Ground 1 Ground 1 Ground 2 2 Glass status signal / Tool fot glass Glass status signal/ Tool (Parameter) ...
