Hyundai Santa Fe (DM): Crankshaft. Components and Components Location - Cylinder Block - Engine Mechanical SystemHyundai Santa Fe (DM): Crankshaft. Components and Components Location

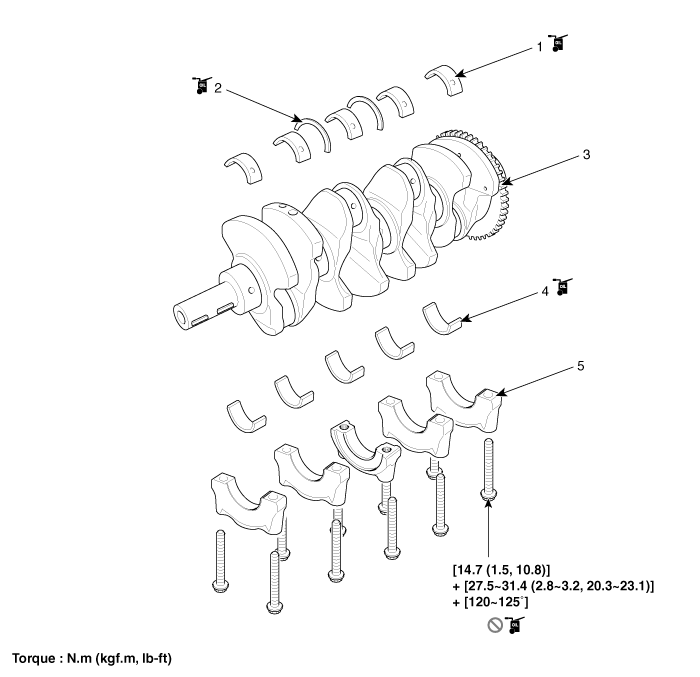

Components

1. Crankshaft upper bearing
2. Thrust bearing
3. Crankshaft
4. Crankshaft lower bearing
5. Main bearing cap


Piston and Connecting Rod. Repair procedures
Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. • Mark all wiring and hoses to avoid ...

Crankshaft. Repair procedures
Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. • Mark all wiring and hoses to avoid ...
