Hyundai Santa Fe: Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe: Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams

Hyundai Santa Fe DM 2013-2018 Service Manual / Engine Control/Fuel System / Engine Control System / Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams

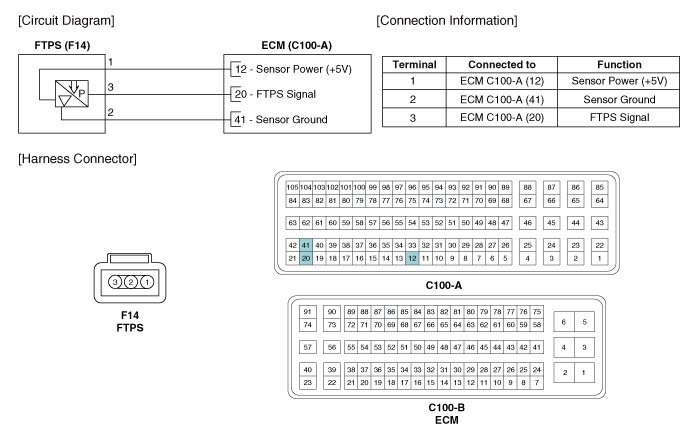

Circuit Diagram


Fuel Tank Pressure Sensor (FTPS). Specifications
Specification Pressure [kPa (kgf/cm², in H2O) Output Voltage (V) -3.75 (-0.038, -15.05) 4.5 0 1.5 +1.25 (0.013, 5.02) 0.5 ...

Fuel Tank Pressure Sensor (FTPS). Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Specification: Refer to "Specification" Removal 1. Turn the ignition switch OFF and ...
