Hyundai Santa Fe: Heated Oxygen Sensor (HO2S). Schematic Diagrams

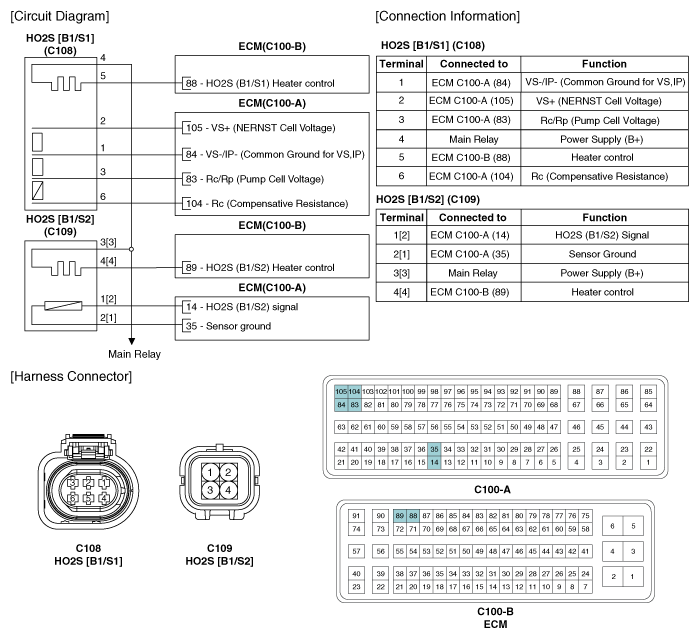

Circuit Diagram
Heated Oxygen Sensor (HO2S). Specifications
Specification HO2S [Bank 1/Sensor 1] Item Specification Heater Resistance (Ω) 2.5 ~ 4.0 [20°C(68°F)] HO2S [Bank 1/Sensor 2] A/F Ratio (λ) Output Voltage(V) RICH Approx. 0.9 LEAN Approx. 0.04 ...
Heated Oxygen Sensor (HO2S). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 4 and 5 [B1/S1]. 4. Measure resistance between the HO2S terminals 3 and 4 ...
