Hyundai Santa Fe (DM): Injector. Troubleshooting - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Injector. Troubleshooting

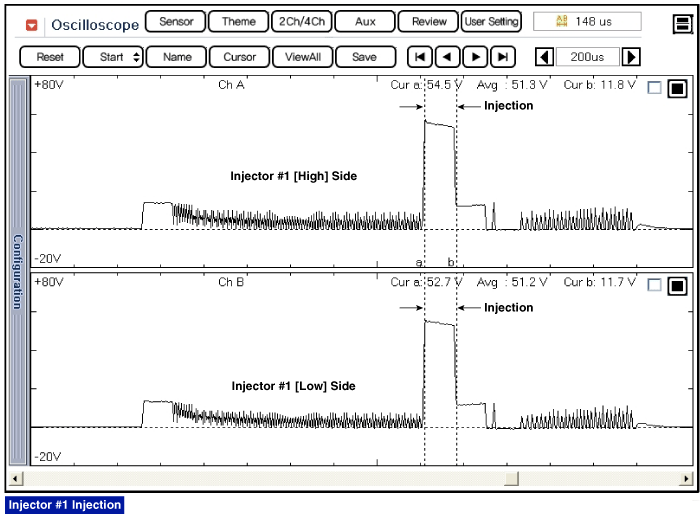

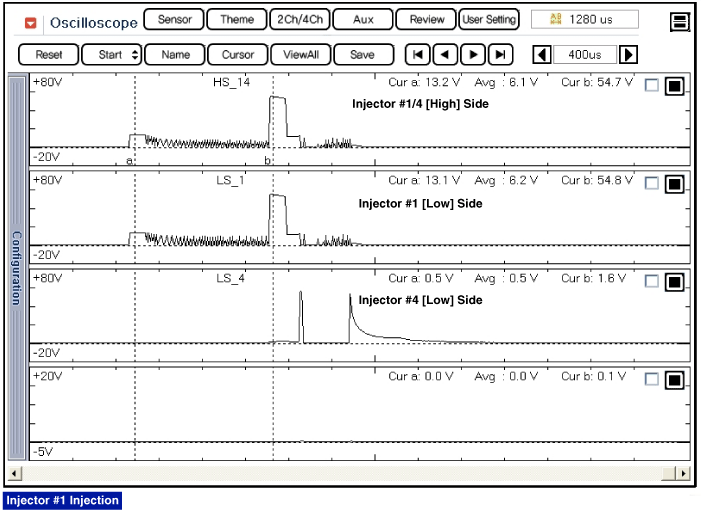

Signal Waveform


Injector. Specifications
Specification Item Specification Coil Resistance (Ω) 1.18 ~ 1.31 [20°C(68°F)] ...

Injector. Schematic Diagrams
Circuit Diagram ...
