Hyundai Santa Fe (DM): Knock Sensor (KS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Santa Fe (DM): Knock Sensor (KS). Schematic Diagrams

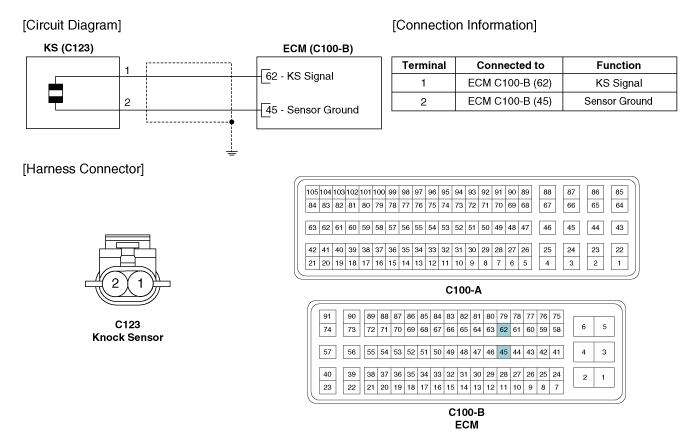

Circuit Diagram


Knock Sensor (KS). Specifications
Specification Item Specification Capacitance (pF) 850 ~ 1,150 ...

Knock Sensor (KS). Repair procedures
Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold. (Refer to Engine Mechanical System - "Intake Manifold") 3. Disconnect the ...
