Hyundai Santa Fe DM 2013-2018 Service Manual / Restraint / Airbag Module / Passenger Airbag (PAB) Module. Components and Components Location

Components


Passenger Airbag (PAB) Module. Description and Operation

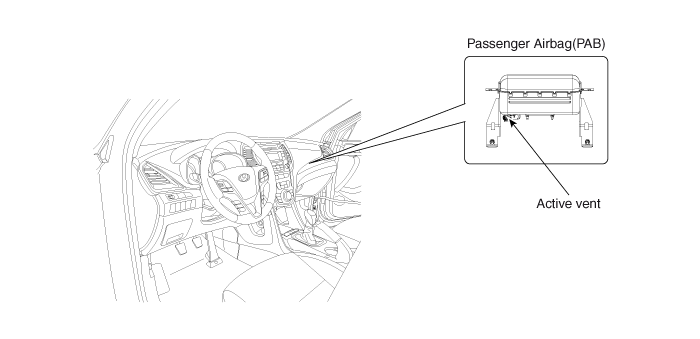

Description Passenger Airbag (PAB) module is located in the passenger crash pad. This PAB contains 2 firing squibs of airbag and 1 firing squib of active vent. Depending of crash speed or the tightening ...

Passenger Airbag (PAB) Module. Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the glove box housing. 3. Remove the passenger airbag mounting nuts (A). 4. Disconnect ...
