Hyundai Santa Fe: Power Window Motor. Components and Components Location - Power Windows - Body Electrical SystemHyundai Santa Fe: Power Window Motor. Components and Components Location

Hyundai Santa Fe DM 2013-2018 Service Manual / Body Electrical System / Power Windows / Power Window Motor. Components and Components Location

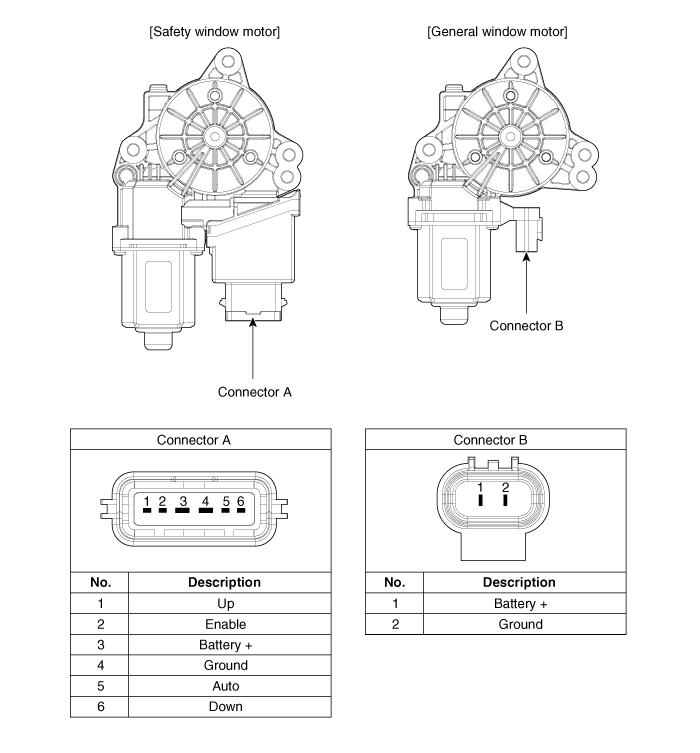

Components


Description and Operation
Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force of 100N (using the 10N/mm spring) ...

Power Window Motor. Schematic Diagrams
Circuit Diagram ...
