Hyundai Santa Fe: Rear combination lamp bulb replacement

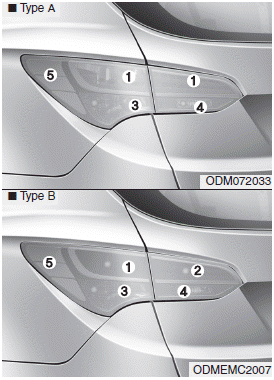

(1) Rear stop and tail lamp
(2) Rear tail lamp
(3) Rear turn signal lamp
(4) Back-up lamp
(5) Rear side marker
Side repeater lamp replacement
If the lamp bulb does not operate, have the vehicle checked by an authorized HYUNDAI dealer. ...
Outside lamp
1. Open the tailgate. 2. Remove the service cover using a flat-blade screwdriver. 3. Loosen the lamp assembly retaining please verify. 4. Remove the rear combination lamp assembly from the body of the ...
