Hyundai Santa Fe (DM): Timing Chain. Components and Components Location - Timing System - Engine Mechanical SystemHyundai Santa Fe (DM): Timing Chain. Components and Components Location

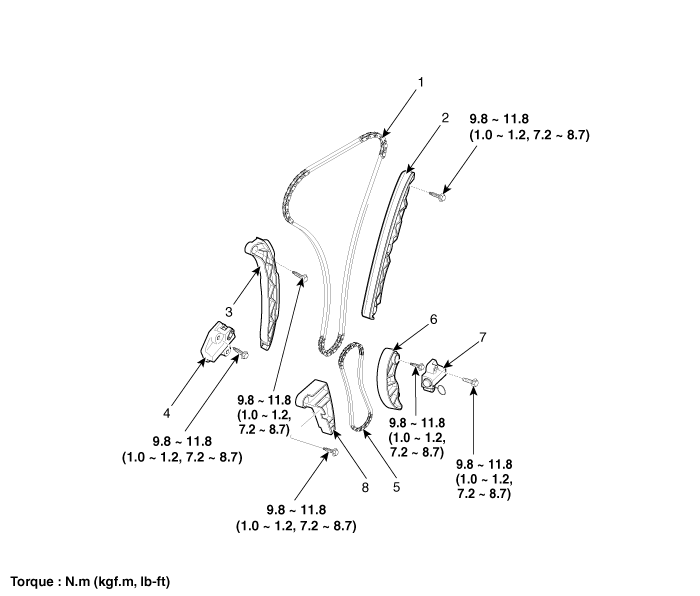

Components

1. Timing chain
2. Timing chain guide
3. Timing chain tension arm
4. Timing chain tension
5. Balance shaft chain
6. Balance shaft chain tension arm
7. Balance shaft chain tension
8. Balance shaft chain guide


Timing Chain Cover. Repair procedures
Removal • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. Mark all wiring and hoses to avoid misconnection. ...

Timing Chain. Repair procedures
Removal 1. Remove the cylinder head cover. 2. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover to set the piston of No.1 cylinder to the top dead center on ...
