Hyundai Santa Fe: Components and Components Location - Timing System - Engine Mechanical SystemHyundai Santa Fe: Components and Components Location

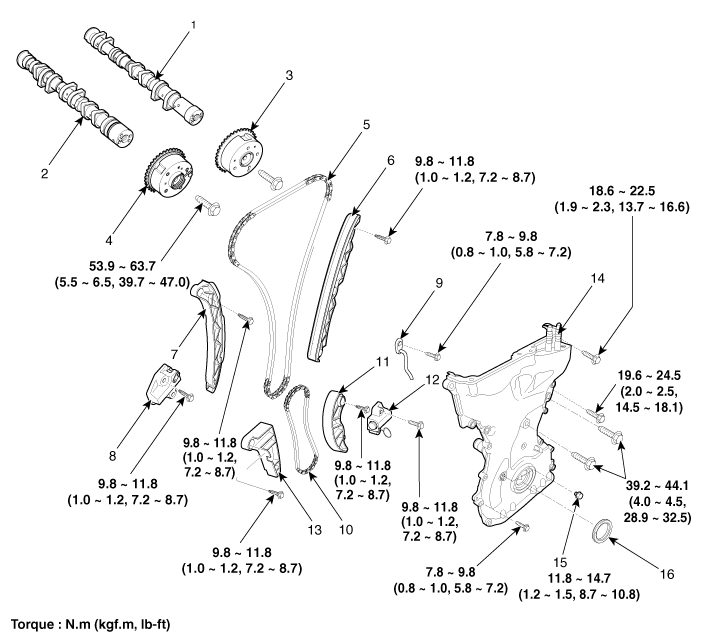

Components

1. Intake camshaft
2. Exhaust camshaft
3. Intake CVVT assembly
4. Exhaust CVVT assembly
5. Timing chain
6. Timing chain guide
7. Timing chain tensioner arm
8. Timing chain tensioner
9. Timing chain oil jet
10. Balance shaft chain
11. Balance shaft chain tensioner arm
12. Balance shaft chain tensioner
13. Balance shaft chain guide
14. Timing chain cover
15. Service hole bolt
16. Crankshaft front oil seal
