Hyundai Santa Fe (DM): Front Body. Body Repair

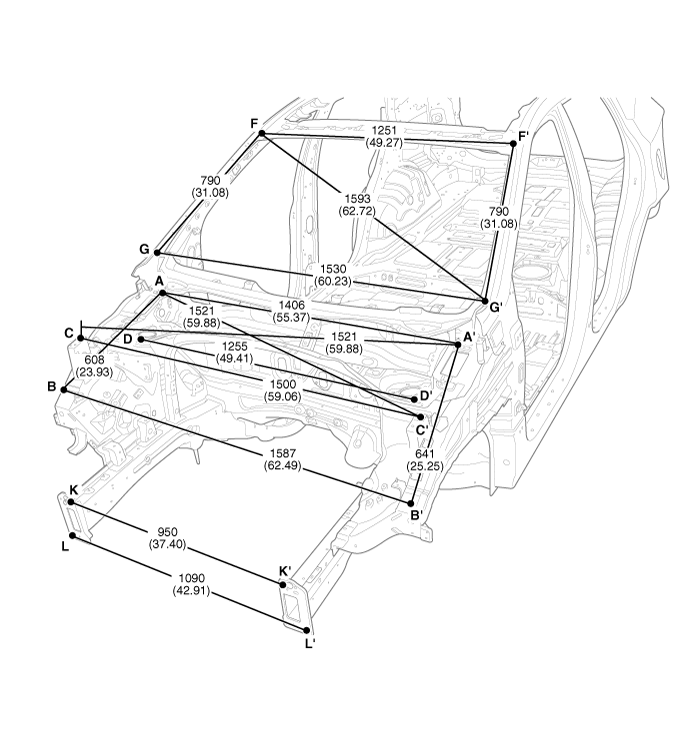

Front Body A
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

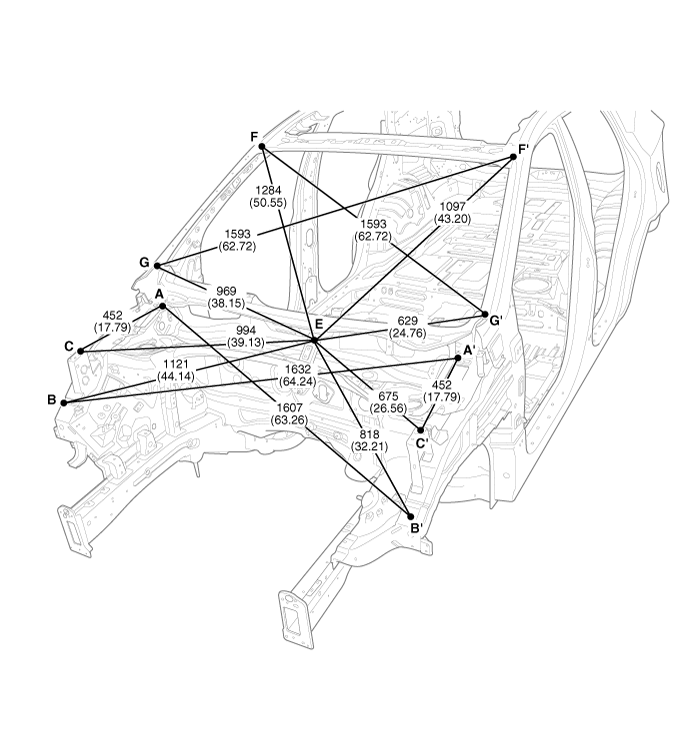

Front Body B
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

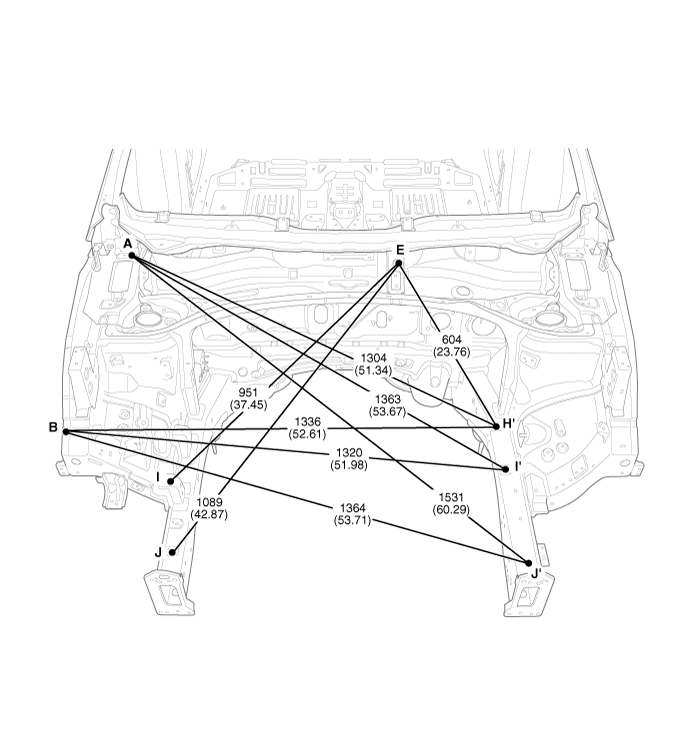

Front Body C
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

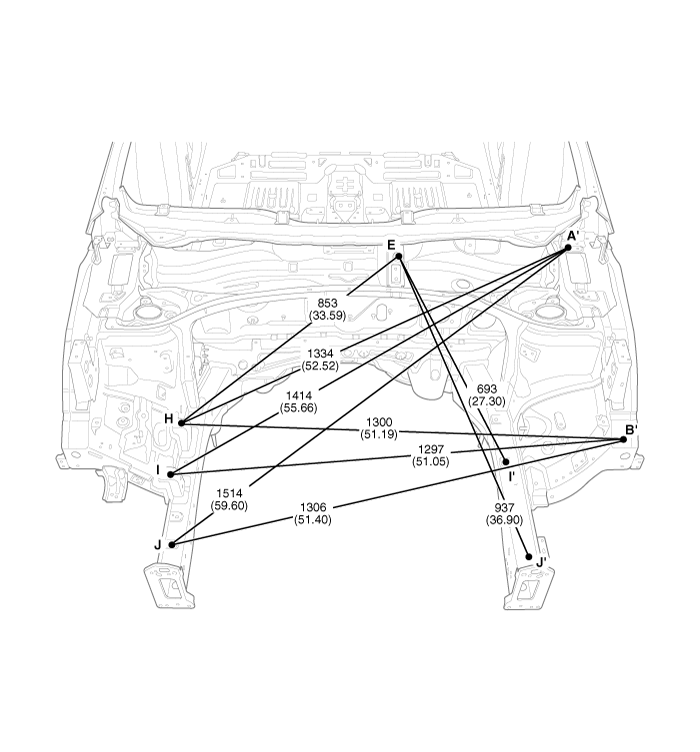

Front Body D
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |

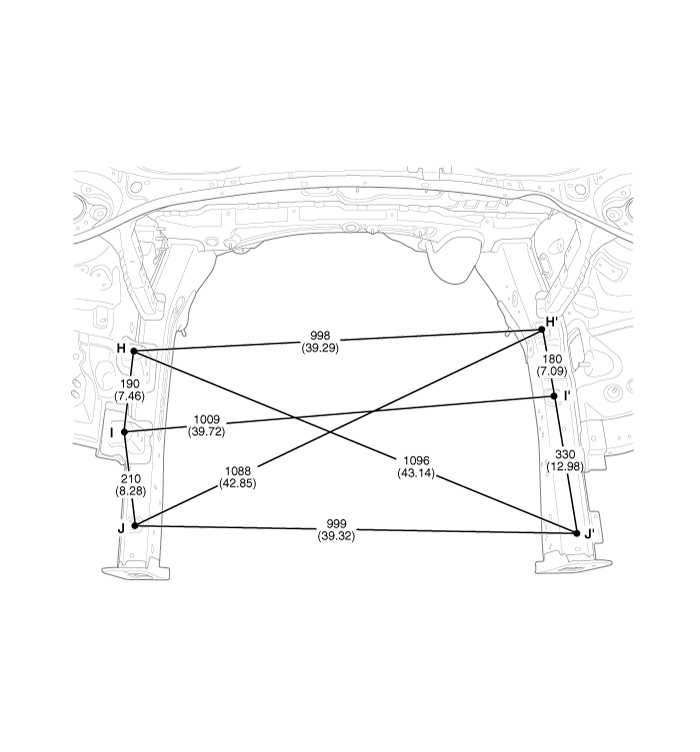

Front Body E
|
* These dimensions indicated in this figure are actual-measurement
dimensions. [ Unit : mm (inch) ] |
|
|
|
|
|
Hood hinge mounting hole (Ø9) |
Fender apron upper panel corner |
Fender apron upper panel tooling hole (7X12) |
|
|
|
|
|
Fender panel mounting hole (Ø6.6) |
Front shock absorber mounting hole (Ø14) |
Windshield wiper motor & linkage mounting hole (Ø6.6) |
|
|
|
|
|
Front pillar outer corner |
Windshield glass side bracket mounting hole (Ø5) |
Engine mounting bracket hole (Ø13) |
|
|
|
|
|
Transaxle mounting hole (Ø15) |
Engine mounting bracket hole (Ø13) |
Transaxle mounting hole (Ø15) |
|
|
|
|
|
Front side member tooling hole (Ø11) |
Front side member tooling hole (Ø11) |
Front end module mounting hole (Ø13) |
|
|
|
|
|
Front end module mounting hole (Ø9) |
|
|
